Belmash BEL-2500SDM Universal woodworking machine sawing and planing!

Belmash BEL-2500SDM Universal woodworking machine sawing and planing!

Features

• The Belmash SDM-2500 is the most powerful, functional and productive machine in its class in the world!
• It is possible to cut wood with a height of 117 mm , and this with 100 and attention to safety
• Functions: sawing at different angles, planing, drilling, milling, rebating, thicknessers and optional thicknessing machine and long hole drilling table
• These portable and compact planing and sawing machines 230V are unique in the market and one of a kind
• Be sure to watch the clarifying VIDEO They work against all other machines of its kind with very powerful induction motors
• An induction motor has 30% more power than a carbon brush motor and is over 40% quieter
• It is also maintenance-free, as there are no carbon brushes to replace
• Furthermore, they are driven in an industrial way by means of poly-belts instead of classical V-belts
• The construction of the frame is also very unique and robust as it is made of sheet steel of 3.5mm thickness
• Together this guarantees excellent performance, but also optimal resistance for your machine
• Thanks to the micro-lifting system of the planing tables, the planing depth can be set very precisely and smoothly, but the tables can also be closed completely in a short space of time
• By completely closing the tables, the saw table has a large working area
• This sdm2500 has a very clear and accurate scale for each setting
• The guide can be locked both in front of and behind the work table, ensuring stable and precise work
• It can also be set to angle or miter with very clear readout, and this for both the planer and saw function
• For the saw there is also a miter guide with clear degree indication
• The sawing height is easily adjustable from 0 to 117mm by a robust handle and convenient and large locknut
• Furthermore, the machine is also equipped for working with rabbit or rebate cutters up to 12mm thickness which are perfectly adjustable in height
• Standard delivered with thickness grippers on the surface planer
• Optionally, one can obtain an additional thicknessing bench which is driven by a poly V-belt

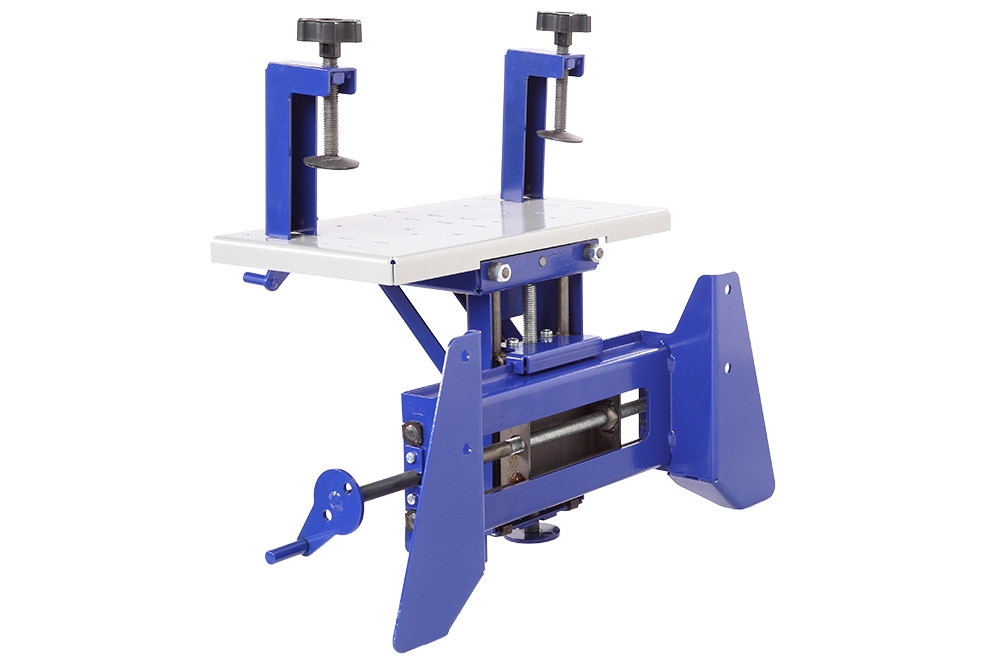

• In addition to the standard router table, a fully-fledged long-hole drilling table is also available
• The high-quality construction of these compact machines, such as thick sheet steel, direct drive, induction motors, high-quality ball bearings, large and robust adjusting and rotating levers give these machines an enormous ease of use with excellent performance and an optimal service life
• The switch is located on a rotating arm and can be freely turned to the right or left in order to fix it in the most favourable position for safe working
• 230V, 3.5 HP powerful induction motor no carbon brushes 40% noise, 30% more power
• 270mm planing width
• Cutting height adjustable from 0 to 117mm
• Compacte multifunctionele machine
• Solid sheet steel tables 3.5mm thick
• Driven by Poly-V belt
• Safety lock system: during sawing the planer tables are locked and vice versa
• Guide can be clamped in front or behind for stable and precise work
• Rotating switch

Technical data

• Planing width 270mm
• Planing spindle speed 7700/2850 RPM
• Motor 230V, 50Hz, 2500W
• Saw blade 315mm
• Machine weight 72 Kg
• Cutting depth 0-117mm
• Dimensions 1030x680x512mm
• Planing cutter 0-3mm
• Range of sawing or planing tilts 0-45
• Dimensions work table 872x532mm
• Packaging dimensions 750x509x251mm

Includes

• Clamping device
• Saw guide
• Saw blade with splitting wedge
• Ruler
