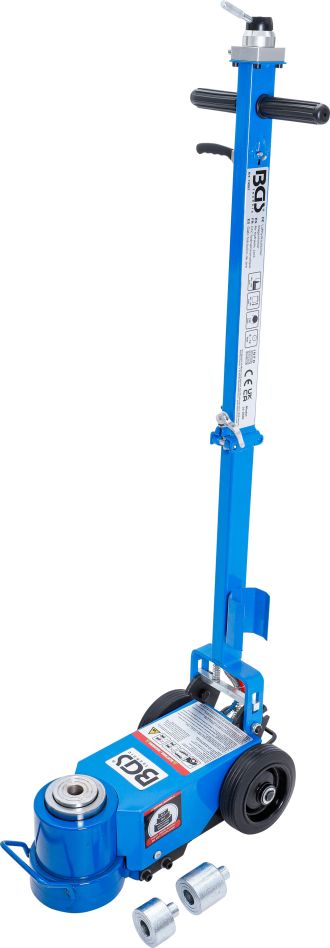

BGS 74287 Air pot jack hydraulic mobile 25 / 50 tt

BGS 74287 Air pot jack hydraulic mobile 25 / 50 tt

Special features

• Short compact design, therefore easy to store
• Air-assisted hydraulic system for effortless lifting
• Large support surface for safe positioning
• 2-stage
• With a base height of 165 mm, the unit can be positioned practically under any axle of medium and small series commercial vehicles
• Overload protection via overpressure valve
• The maximum lifting height is achieved using the two supplied adapters

• Max. load capacity level 1: 50 t
• Max. load capacity level 2: 25 t
• Disc diameter: 98 mm
• Underride height 165 mm
• Rear width: 280 mm
• Front width: 160 mm
• Handle length: 1160 mm
• Handle diameter: 50 x 30.5 mm
• Height adapters: 40, 60 mm
• Cylinder diameter: 136 mm
• Air consumption: 35 - 40 l/min

Technical data

• Max working pressure: 12 bar
• Min. working pressure: 8 bar
• Gross weight: 45000 g
• Height max: 330 mm
• Min. height: 165 mm
• Lifting height: 165 mm
• Length: 520 mm
• Wheels diameter: 155 mm
• Max. load capacity: 25 | 50 t
