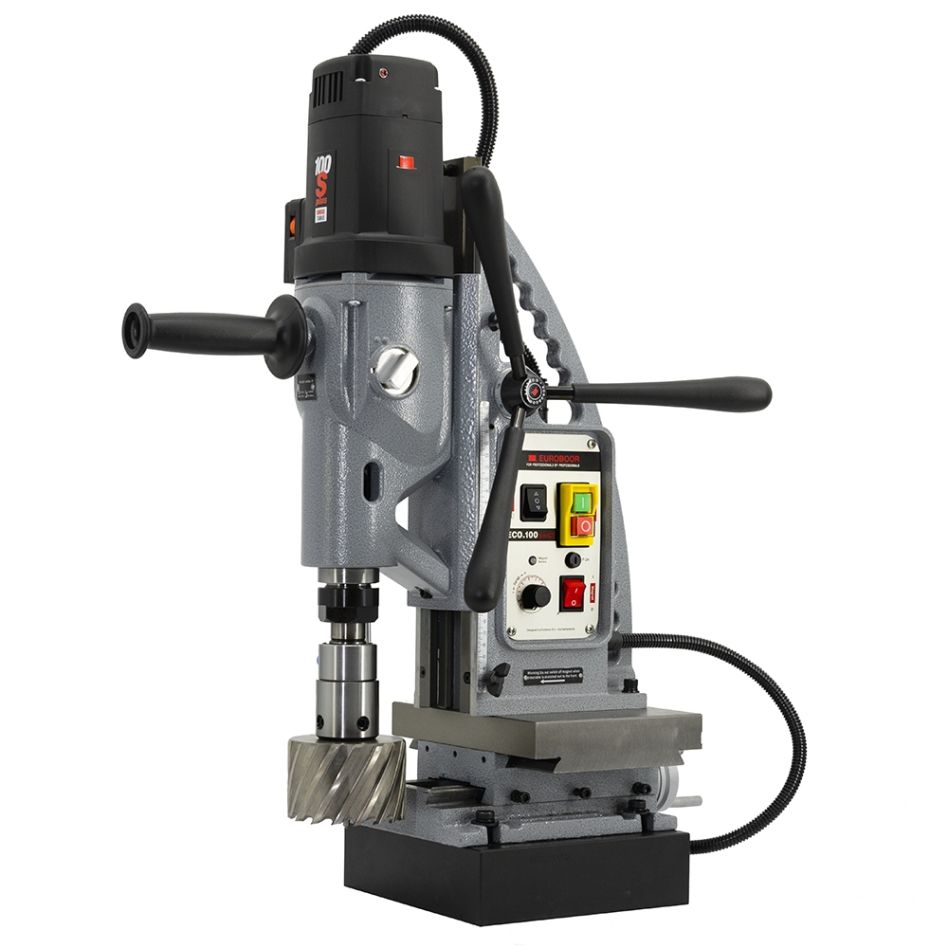

Euroboor 11100208142004 ECO.100S+/CT Magnetic core drill, 100 mm, 220 V

Euroboor ECO.100S+/CT Magnetic core drill, 100 mm, 220 V

Special features

The Euroboor ECO.100S+/CT magnetic core drill drills holes up to ø 100 mm and is particularly suitable for tapping and milling operations that require high precision. The Cross Table offers exceptional control, allowing you to accurately position the machine over a range of 110 mm (x-axis) and 120 mm (y-axis) after the magnet is attached to the surface. The spindle, secured with a screw lock, provides the strongest coupling to the motor, which minimizes backlash during demanding operations and improves accuracy. With the dynamic positioning function, you can easily slot and machine more complex workpieces without changing tools. The powerful 1,900 W motor, along with an oil-lubricated four-speed gearbox and advanced electronics, ensures safe and reliable performance on a variety of tasks.

• Milling table base for dynamic positioning during drilling with a range of 110 mm (x-axis) and 120 mm (y-axis)
• Milling function to create slots and work on complex workpieces
• Switch to tapping to create perfectly centered threads while the machine remains on the workpiece
• Strong (dual coil CNC) 2-way magnet, allowing the machine to consume less energy, generate less heat and therefore last longer
• Advanced safety features to reduce the risks of damage to the machine, tools, workpiece, fixture, control unit(s) and risk of operator injury
• Morse cone 3 spindle with integrated cooling and lubrication
• Suitable for use in rooms and workshops where the power supply is of inferior quality
• Timely service notification to avoid additional costs of unexpected downtime or unnecessary parts replacement

Technical data

• Maximum core drill diameter: 100 mm
• Minimum core drill diameter: 12 mm
• Application: drilling, countersinking, tapping wire
• Connection 2 morse taper / drill head class: MT3
• Connection 1 model: internal
• Connection model 2: ejection
• Connection 1 size: 19.05 mm
• Connection 1 type: Weldon
• Connection type 2: morse taper
• Maximum diameter countersink bits: 105 mm
• Minimum diameter countersinks: 10 mm
• Electronic speed adjustment: yes
• Type of gearbox lubrication: oil
• Height: 793 mm
• Maximum height: 793 mm
• Height minimum: 615 mm
• Length: 497 mm
• Magnet height: 64 mm
• Magnet length: 220 mm
• Magnet width: 220 mm
• Magnetic force: 4400 kg
• Motor power: 1900 W
• Net weight: 55 kg
• Power source connection: EU plug according to CEE 7/7
• Supply current: AC
• Power source frequency: 50 - 60 Hz
• Power source: mains supply
• Power source voltage: 220 - 240 V
• Power source type: electric
• Direction of rotation: bi-directional
• Gear 1 speed: 110 rpm
• Load speed gear 1: 85 rpm
• Load speed gear 2: 152 rpm
• Load speed gear 3: 270 rpm
• Loaded gear 4 speed: 480 rpm
• Loaded maximum speed gear 1: 85 rpm
• Loaded maximum speed gear 2: 152 rpm
• Loaded maximum speed gear 3: 270 rpm
• Loaded maximum speed gear 4: 480 rpm
• No load speed gear 1: 110 rpm
• No load maximum speed gear 1: 110 rpm
• No load maximum speed gear 2: 190 rpm
• No load maximum speed gear 3: 400 rpm
• No load maximum speed gear 4: 620 rpm
• No load minimum speed gear 1: 42 rpm
• No load minimum speed gear 2: 65 rpm
• No load minimum speed gear 3: 140 rpm
• No load minimum speed gear 4: 220 rpm
• Stroke: 260 mm
• Measuring system: mm (metric)
• Maximum diameter thread tapping: M30
• Minimum diameter thread tapping: M3
• Total power: 2200 mm
• Maximum diameter spiral drills: 32 mm
• Minimum diameter sprial drilling: 1 mm
• Width: 375 mm
