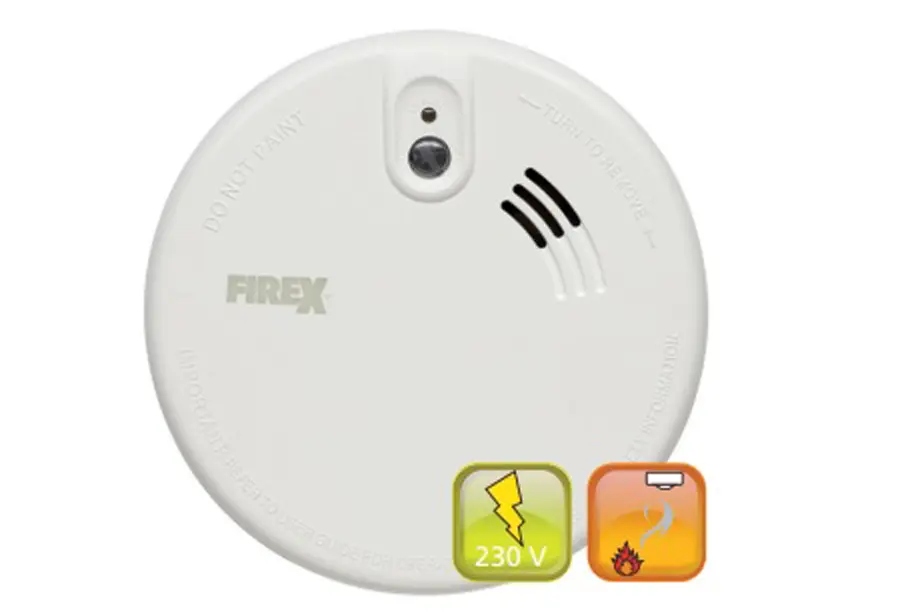

Firex 809-152040 KF20 Optical Linkable Smoke Detector 230V with 9V backup

Firex 809-152040 KF20 Optical Linkable Smoke Detector 230V with 9V backup

Special Features.

• The KF20 is quick-mount linkable smoke detectors with very low power consumption.
• This smoke detector developed specifically for residential construction comes with a mounting plate for quick mounting on a center box.
• This smoke detector with slim design is very suitable for housing projects due to its good value for money and easy installation.
• It is an optical smoke detector linkable, 230 VAC with 9V back up.

Strengths.

• Energy efficient: The Firex detectors KF20 and KF20R are very energy efficient. The energy consumption is less than 15mA.
• Installation method: The Firex detectors are equipped with a "push-fit" plug with 15cm wiring to connect the detector to the house wiring.
• Pairing options: Up to 24 Firex and Kidde smoke, heat, and carbon monoxide detectors can be interconnected with 6 detector accessories such as a relay module, flash light, vibration pad, etc.
• Pollution compensation: Contamination of the optical chamber is automatically compensated to prevent unnecessary alarms.

Advantages

• Alarm memory LED for paired smoke detectors.
• Easy to identify which smoke detector has detected smoke
• Very energy efficient
• Optical chamber with mesh for optimal protection against dust and insects
• Indication led for mains voltage and test and alarm pause function
• The mounting plate and plug can be fitted in the shell
• When finished, simply click the Firex smoke detector into the base with bayonet fitting
• Firex and Kidde detectors are interconnectable

Application

• Smoke detectors are used in escape routes and living areas of residential buildings.
• The Firex smoke detector KF20 series is ideally suited for buildings with a residential function where smoke detectors are required in accordance with the building regulations and must comply with NEN2555 and NEN-14604.
• Such as new construction, renovations of older dwellings, student housing and rented rooms.

Technical data

• Product Firex wired connectable smoke detectors type KF20
• Dimensions (wxh) Smoke detector 127 x 39 mm, mounting plate 133 x 6 mm
• Temperature range 0 - 40˚C
• Relative humidity Up to 93% RH (non-condensing)
• Sensor Optical chamber with insect protection
• Test button Simulates smoke in the optical chamber, thus testing electronics and signaling devices
• Automatic self-test Electronics are automatically tested every 40 seconds, detector beeps when an error occurs
• Supply voltage 230 VAC, 50Hz
• Current consumption <15mA
• Color White: fits well with RAL9003 and RAL9010
• Backup Replaceable Everready 9V alkaline battery (model KF20)
• Battery monitoring Battery/Li-cell condition is tested every 40 seconds, detector beeps on error
• Indicators Operation: permanent green LED Alarm: fast blinking red LED Alarm silenced: red LED blinks once every 10 seconds
• Alarm signal min. 85 dB(A) at 3 meters
• Connection possibilities 24 Firex and Kidde detectors can be connected by wire
• Electrical connection using a mounting base and plug with a length of 15 cm
• Warranty 6 years warranty on all Firex models detectors
• Certificates BSEN 14604:2005 (License: KM524754)
