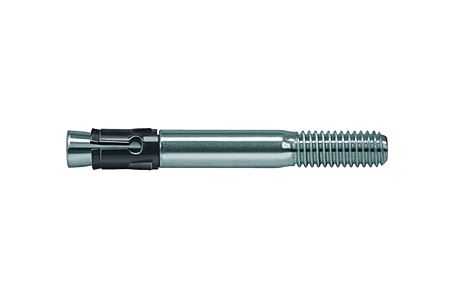

Fischer 44110 Stud anchor FNA II 6 x 30 M 6 x 41 with metric thread (without nut and washer) ev 100 pieces

Fischer 44110 Nail anchor FNA II 6 x 30 M 6 x 41 with metric thread (without nut and washer) ev 100 pcs.

The Fischer Nail Anchor FNA II 6 with thread (without nut) is made of galvanized steel. The FNA II is inserted into the pre-pitch assembly with only a few taps and thus time-saving. When loaded, the FNA II expands automatically. In the process, the cone is pulled into the spreading clip and tightens against the wall of the drilled hole. The Fischer Nail Anchor FNA II with thread is used primarily for the attachment of metal clamps for pipes and tubes in interior construction.

Advantages

• Easy disassembly of the fireproof plate without damaging it
• Reusability of the fireproof plate
• Secure anchoring especially under vibration, wind, suction and pressure influences
• Low anchoring depth (30 mm)
• Convenient mounting without a mounting aid with controlled tightening torque
• Approved system that has been tried and tested millions of times

Applications

• Concrete C12/15 to C50/60, cracked and uncracked
• For multiple fixings of non-load bearing systems

Building Materials

• The washer significantly increases the pull-through forces and simultaneously prevents damage to the plate during disassembly
• Disassembly by simply pinching off the nail head, thanks to the special 2-position pliers
• For quick assembly, use the compressed air assembly tool (Art. No. 093731).

Technical data

• Approval : relevant
• Drill hole diameter : 6 mm
• Min. hole depth for through-hole mounting : 40 mm
• Plug length : 41 mm
• Thread : M 6
• Key width : 10 mm
• Content : 100
