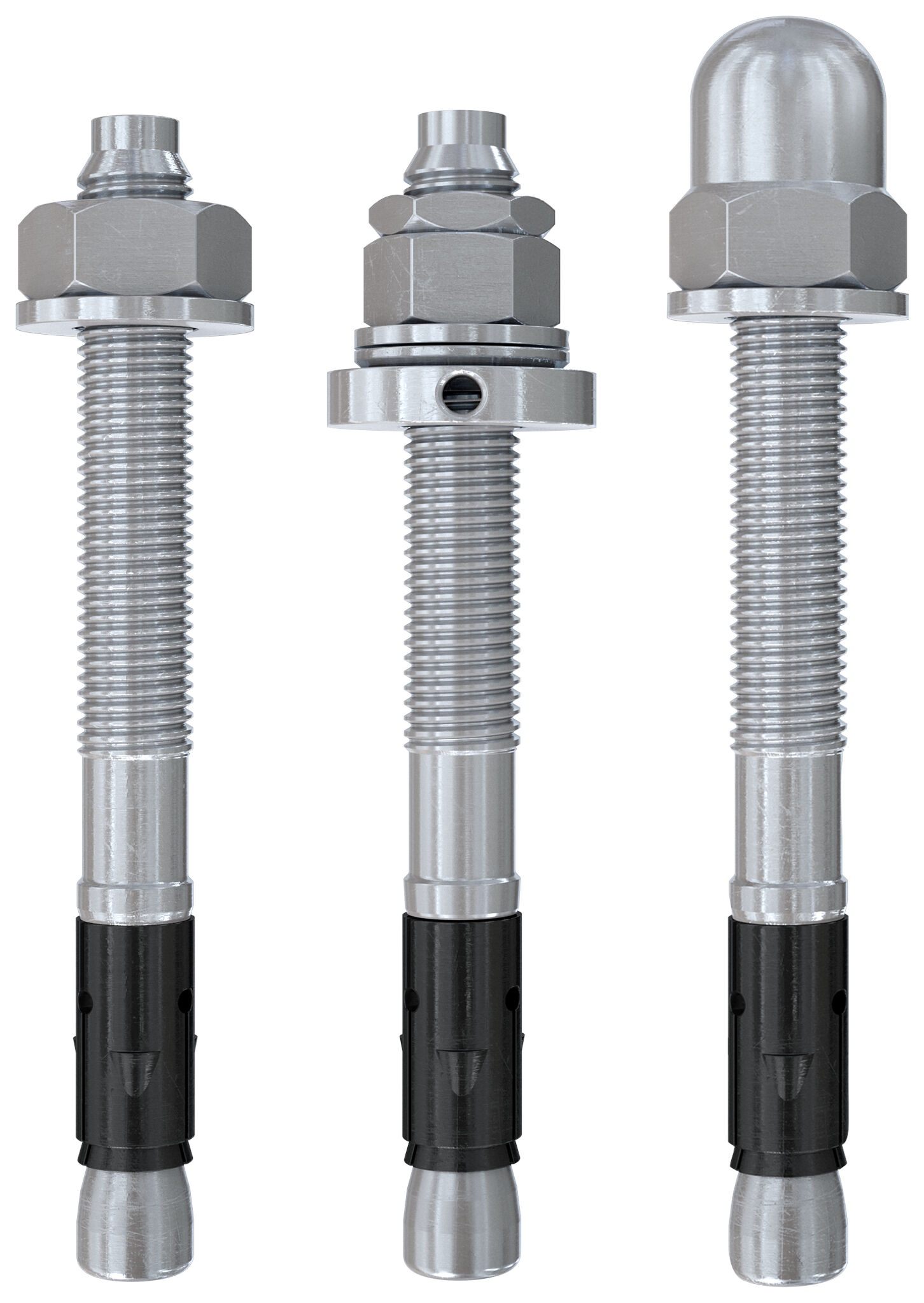

Fischer 564581 Piercing anchor FAZ II Plus 10 x 115 mm

Fischer 564581 Piercing anchor FAZ II Plus 10 x 115 mm

Special features

• The fischer Piercing anchor FAZ II Plus is the steel segment anchor for the highest demands with high tensile loads for a wide range of applications.
• The steel anchor can be used to anchor heavy loads in cracked concrete.
• The FAZ II Plus is easier and quicker to install as cleaning the borehole is no longer necessary (applies only to M8 to M24).
• The proven spreader clip safely transfers forces into the concrete and enables an immediate high load-bearing capacity, even in the case of dynamic loads.
• The steel anchor is ideal for anchoring railings, heavy cable ducts, consoles and in the case of dynamic loads such as lifting bridges, conveyor belts and pumps.

Technical data.

• Drill diameter (mm): 10
• Min. drill hole depth for through-hole mounting (mm): 105
• Max. useful length lift,stand/lift,red (mm): 30 / 50
• Anchor length (mm): 115
• Thread (mm): M10 x 73
• Wrench size: 17 mm
• Tightening torque (Tinst): 45 N-m

Scope of delivery

• 25 pieces
