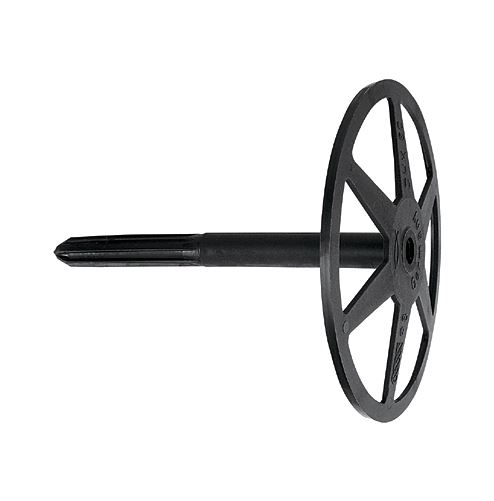

Fischer 80941 Insulation plug DHK 120 for soft insulation 200 pieces

Fischer 80941 Insulation plug DHK 120 for soft insulation 200 pieces

The Fischer Insulation plug DHK is an efficient plastic insulation plug for insulation boards with low pressure resistance. The DHK is tapped in with the hammer in the push-through assembly. When tapping in, the ribs tighten in the drilled hole and the DHK is optimally pressed against the wall. The Fischer Insulation plug DHK is suitable for anchoring insulation boards in solid and perforated brick, concrete and aerated concrete.

Advantages

• The improved geometry of the spreader allows for a low anchoring depth which also reduces the need for drilling
• Flexible pins in the plate section adapt to the insulation material and guarantee permanent contact pressure
• Easy stroke assembly allows for a quick assembly process and reduces workload
• The color of the DHK means it does not stand out on black clad insulation material in rear-ventilated facades.

Applications

• Concrete
• Hollow building block of light concrete
• Perforated brick
• Perforated limestone
• Solid limestone
• High-density natural stone
• Aerated concrete
• Full brick van lichtbeton
• Full brick

Building Materials

• The DHK is set with a hammer in push-through assembly
• The plate size of the insulation plug should be selected in accordance with the compressive strength of the insulation material: DHK 45 for pressure-resistant; DHK 90 for soft insulation materials
• The dispersion of the ribs in the borehole confers on the DHK an ideal contact pressure
• Temperature pressure at installation: -40 °C to +80 °C.

Technical data

• Drill hole diameter : 8 mm
• Min. drill hole depth : 30 mm
• Min. anchoring depth : 20 mm
• Plug length : 145 mm
• Max. thickness of attachment : 120 mm
• Content : 200
