Fluke 2630732 1760 BASIC Driefase Power Quality Recorder

Fluke 1760 BASIC Driefase Power Quality Recorder

Features

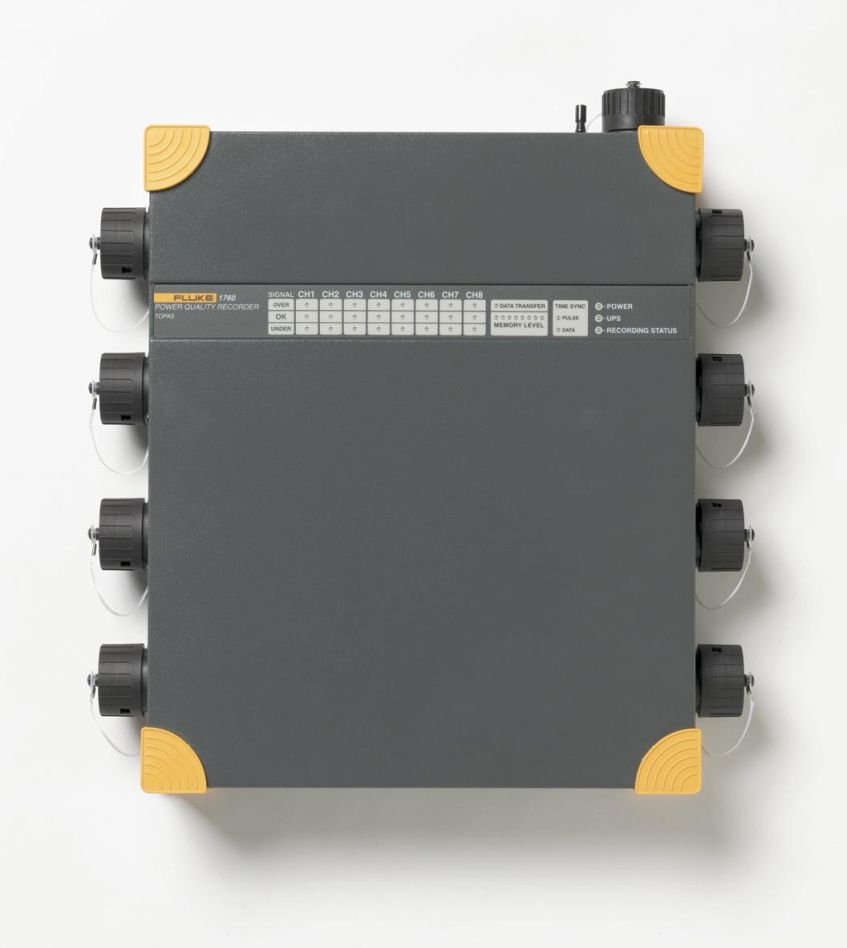

• The Fluke 1760 three-phase Power Quality Recorder is fully IEC 61000-4-30 Class A compliant, providing advanced power quality analysis and consistent compliance testing.
• Designed for analysis of utility and industrial power distribution systems, in medium and high voltage networks, this power supply tester provides the flexibility to customize thresholds, algorithms and measurement settings.
• The Fluke 1760 power quality recorder records the most comprehensive details on user-selected parameters.
• Basic Power Quality Recorder Topas with 8 input channels (4 current/4 voltage channels or 8 voltage channels)
• Comprehensive failure analysis
• Perform rapid transient analysis and determine the actual cause of equipment failures for future prevention and predictive maintenance.
• The fast transient analysis with a measuring range of 6000 V enables the recording of very short impulses, e.g. lightning strikes.
• Class A service quality conformity Validating the incoming network supply quality at the service input.
• Because the Fluke 1760 meets Class A requirements, verification results are absolutely reliable.
• Connecting events in multiple locations
• Because it uses GPS time synchronization, users can quickly determine where a failure first occurred, either inside or outside the facility.
• Galvanic separation and DC coupling
• It allows complete measurements to be performed on different power supply systems.
• For example, locating problems in UPS systems by simultaneously measuring battery voltage and power output.
• Assessing the power quality and power load
• Assess basic grid power quality to validate compatibility with critical systems prior to installation, and verify electrical system capacity before adding loads.

Includes

• Internal Flash-memory 2 GB
• PQ Analyze software on CD-ROM
• Ethernet cable for network connection (1)
• Crosslink Ethernet cable for direct connection to PC (1)
• Power cable (1)
• Operating manuals
• Carrying case
