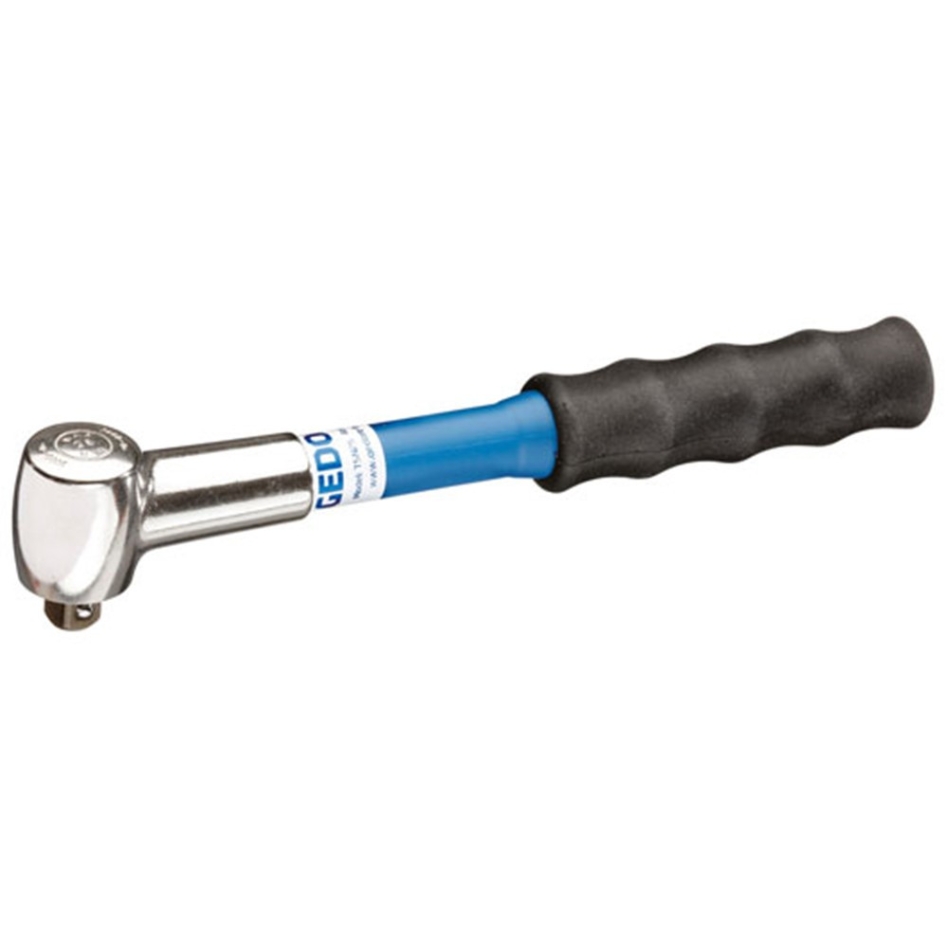

Gedore 7091900 TSN 25 D Torque wrench TSN Slipper 1/4" 5-25 Nm

Gedore 7091900 TSN 25 D Torque wrench TSN Slipper 1/4" 5-25 Nm

Special features

• Application:
  - Controlled tightening of screws in the range of 5 - 125 N-m
  - serial or conveyor assembly
  - extreme continuous use
• Implementation:
  - fixed adjustable torque wrench - without scale
  - 1/4", 3/8" or 1/2" drive square with ball lock.
  - With integrated ratchet for controlled clockwise tightening
  - accuracy: +/- 4% tolerance of the set scale value
  - According to DIN EN ISO 6789, traceable to national standards
  - precision mechanism clearly slips when the set value is reached - overstretching is not possible
  - automatic return to initial position
  - light but sturdy and corrosion-resistant construction
  - very handy and non-slip rubber handle
  - the fixed value can be set at the factory or manually using suitable test equipment
  - Please specify N-m value when ordering . if factory setting is required (price on request)
  - EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications

Technical data

• 759
• drive 4-sided nominal size 6.3 mm
• length (l, l1) 216 mm
• drive 4-sided 43191 inch
• working/measuring range N.m (min/max) 45778 N-m

Delivery Scope:

• torque wrench type TSN SLIPPER
• setting key, to change the set value (using test clock!)
• Test certificate according to DIN EN ISO 6789
