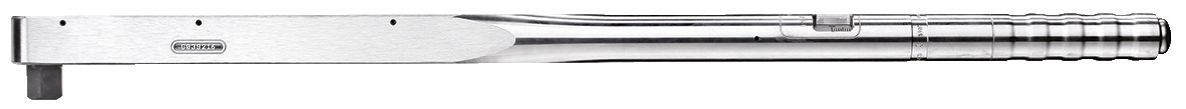

Gedore 7691500 8563-10 DREMOMETER Torque wrench D 3/4" 155-760 Nm

Gedore 7691500 8563-10 DREMOMETER Torque wrench D 3/4" 155-760 Nm

Special features.

• Application: controlled screw tightening in the range 155 - 760 Nm / 115 - 560 lbf-ft
• For use in almost all industrial (production) environments
• Design: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard, 3/4" drive square with pin lock DIN 3120 - B 20
• ISO 1174
• Automatic stop with tactile and audible signal
• Double scale with 10 Nm and 10 lbf-ft graduations
• Technical advantages/function: Light but robust (because the housing is made of a single piece of aluminum), very workshop-friendly
• No shifting of set values and thus no impact on accuracy by working with both hands or outside the handle (as with conventional torque wrenches). Both the drive square and pivot point are on one shaft, so lengthening the wrench does not affect the tightening value.
• Extremely low wear due to force reduction on the lever mechanism
• Forged lever chain from the in-house GEDORE quality forge
• High precision, even in heavy continuous use
• Long service life and long service life
• Simple operation - quick and reliable tightening of the set torque
• Convenient adjustment using an attractively designed, captive adjustment knob on the handle end
• Single or double drive square for controlled clockwise or counter-clockwise tightening

Technical data

• Content (number of pieces): 1
• Overall length: 812 mm
• Overall width: 45 mm
• Overall height: 60 mm
• Net weight: 3.74 kg
• 1000 V insulated: No
• VDE certified: No
• Material: Aluminum alloy
• Head width 1: 45 mm
• Target groups: Automotive, Industry, Construction and commercial vehicles, Military, Energy, Mechanical engineering, Workshop, Utilities, Service, Agriculture, Oil and gas
• Head height 1: 35 mm
• Standard: DIN 3120 - B 20ISO 1174
• Drive Square: 3/4 Inch
• Drive Square: 20 mm
• Application: Assembly, Series fitting, Production, Maintenance and repair
• Torque (max.): 760 Nm
• Drive type/drive: Single-sided square
• Torque (min.): 155 Nm
• Distance housing - square center: 22.5 mm
• Precision +/-: +/- 3 %.
• Tightening direction: clockwise
• Fixed setting: No
• Test certificate: DIN EN ISO 6789-2:2017
• Torque range (min./max.): 155-760 Nm
• Cut-off mechanism: Short path release
• Tightening torque (max.): 560 lbf-ft.
• Tightening torque (min.): 115 lbf-ft
• Tightening range (min/max): 115-560 lbf-ft
• Scale: 10 lbf-ft
• Storage/Contents: Plastic box
• Calibration length: 719 mm
