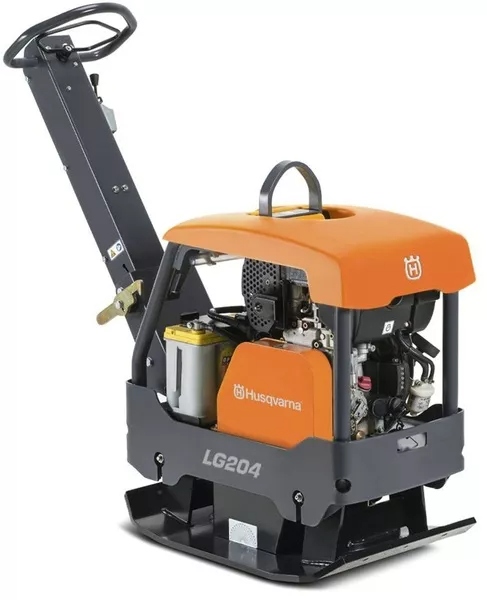

Husqvarna 967855203 LG204 Vibratory plate Diesel Hatz 600 mm 36 kN

Husqvarna 967855203 LG204 Vibrating Plate Diesel Hatz 600 mm 36 kN

Special Features

• The LG 204 is a compact, lightweight yet powerful two-way vibratory plate designed for smaller jobs, such as driveways and sidewalks, private home projects and narrow ditches.
• These machines are perfectly usable when macadam beds are thinner and when maneuverability and responsive handling are needed.
• The Hatz 1B20 diesel engine reduces fuel consumption and emissions, while high-quality components reduce vibration.
• This machine is equipped with a durable lower plate made of Hardox 400 steel.

Advantages

• Durable plates: The plates are made of extremely durable and wear-resistant Hardox 400 steel. The special design prevents stones from getting stuck between the plate and the frame.
• Strong protection, easy transport: The robust steel frame protects the engine and transmission. The frame is also equipped with a lifting eye for easy transport.
• Easy operation: The forward/reverse lever and fixed handle provide easy operation on all surfaces. No need to continuously push/pull during operation.
• Low handle vibration level: Excellent engineering and high-quality components minimize vibration levels and stress, contributing to a safer, more productive and enjoyable workday.

Technical data

• Engine/engine model(new) 1B20
• Power (According to motor manufacturer's specification) 3.1 kW
• Type of fuel Diesel
• Starter Electric
• Exhaust emissions (CO2 EU V) 987 g/kWh
• Propulsion Diesel
• Centrifugal force, N 36 kN
• Speed 22 m/min
• Compaction indicator No
• Plate width (mm) 600 mm
• Product dimension, width 600 mm
• Weight 251 kg
• Packing length 970 mm
• Packing width 600 mm
• Packing height 1,520 mm
• Article gross weight 297,000 g
• Sound pressure level (LWA) 108 dB(A)
• Sound pressure level at operator's ear 93 dB(A)

Scope of delivery

• Manual
