Kränzle 63220.0 Therm 1017 Hot water high pressure washer 400V

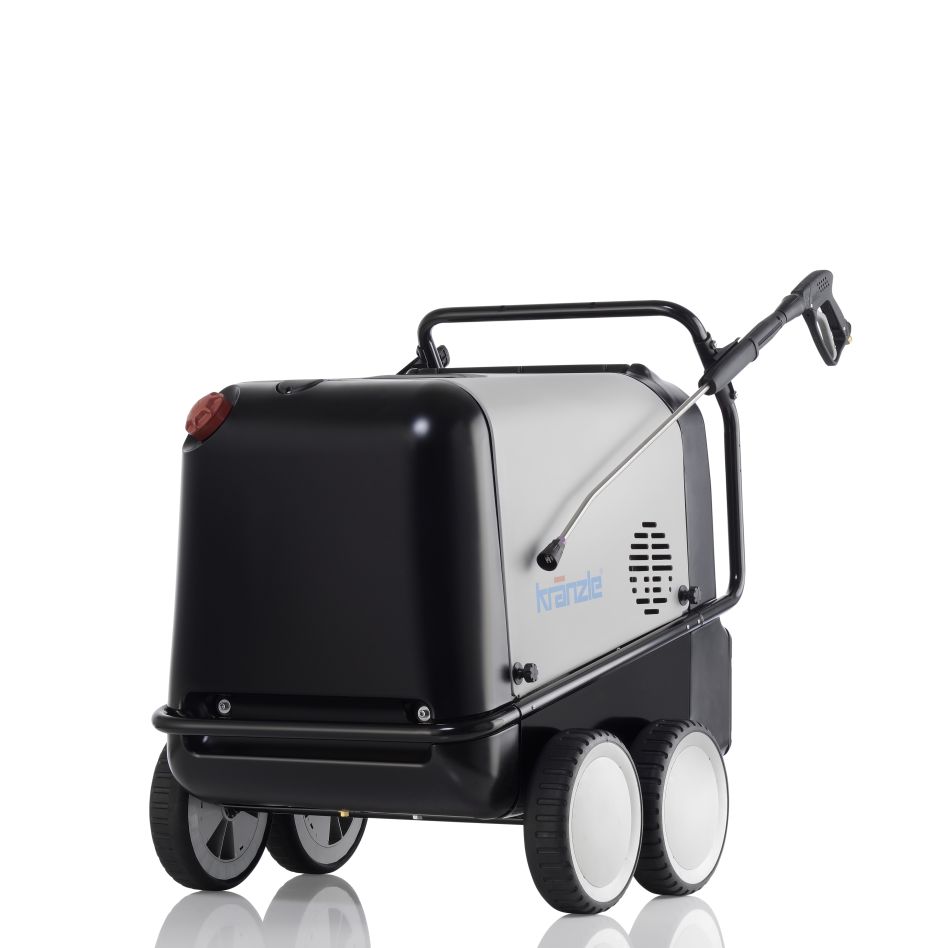

Kränzle Therm 1017 Hot water high pressure cleaner 400V

Special Features

• The Kränzle Therm 1017 with Reel is a powerful and versatile hot water pressure washer designed for intensive use in professional environments.
• Thermostat: The machine is equipped with a high-precision thermostat, which ensures a constant temperature during cleaning. This is important for tasks that require a stable water temperature, such as removing grease or oil.
• Kränzle Axial Pump: The pressure washer uses a robust Kränzle axial pump, known for its reliability and durability. These pumps are designed to last and withstand heavy use.
• Total-stop system: This system provides delayed engine shutdown when the tractor is released. This extends the life of the pump and engine, and helps save energy.
• Safety circuit: The safety circuit provides additional protection and prevents the machine from being overloaded or damaged during improper use.
• Pressure control: The pressure regulator allows the user to adjust the working pressure to the specific cleaning task. This makes the machine more versatile in use and suitable for different surfaces and contaminants.
• Cleaning agent suction: The machine can suction cleaning agents, which increases cleaning effectiveness, especially when removing stubborn dirt.
• Parking brake: For added safety and stability during operation, the machine has a parking brake.
• Direct suction: The Therm 1017 H has the ability to draw water directly, up to a height of 2.5 meters. This is useful in situations where a direct water connection is not available.
• Float Tank: The built-in float tank has a capacity of 12 liters, which helps maintain constant water flow and pressure even with fluctuations in water supply.

Strengths

• Eco mode
• Flow monitoring
• Front ventilation combustion chamber
• Optical flame monitoring
• Overheating protection (Exhaust gas temperature at more than 260 °C)
• Stop of burner in case of insufficient fuel
• Fuel tank: 35 l

Applications

• Agricultural sector; agriculture, animal husbandry, crop cultivation. Construction sector, fishing, food industry, petrochemical industry, etc.

Technical data

• Operating pressure bar | MPa 30-150 | 3-15
• Throughput l/min | l/h 16.7 | 1000
• Permitted overpressure bar | MPa 170 | 17
• Engine speed rpm 1400
• Connection V | ~ | Hz | A 400 | 3 | 50 | 8.5
• Power intake | output kW 5.5 | 4.0
• Connection cable m 7.5
• Dimensions L | W | H without Hose Reel mm 1050 | 800 | 1015
• Dimensions L | W | H incl. Hose reel mm 1050 | 800 | 1300
• Weight without | incl. Hose reel kg 193 | 198
• Max. temperature °C 12-80
• Steam temperature °C 140
• Fuel consumption 6.2 | 7.4 ▹ eco: 4.8 | 6.3
• max. heating capacity kg/h | l/h 6.2 | 7.4 ▹ eco: 4.8 | 6.3
• Fuel consumption ∆T 45° kg/h | l/h 5.6 | 6.6
• Heating power kW 68

Scope of delivery

• High-pressure hose without Hose Reel m | Art. no. 10 (DN8) | 44878
• Gun with trip protection Model | Art.-No. Starlet 3 | 12500
• Lance with flat jet nozzle Nozzle | Art.-no. 06 | 12420-D2506
• Water inlet filter Ref. no. 13310
