Leica 864431 Lino L2P5-1 Line and Dot Laser

Leica Lino L2P5-1 Line and Spot Laser 864431

Product Description

• The Leica Lino L2P5-1 point and line laser you can rely on.
• Convenient and simple to use.
• The Leica LINO L2P5-1 produces exquisite visible lines precisely, quickly and easily.

Special features

• Projects horizontally, vertically,diagonally, top, bottom left and right
• Excellent visibility laser lines
• Automatic spirit level with great accuracy
• Only two buttons for very easy and intuitive use
• Locking function for projection of lines at an angle and protection during transport
• IP54: robust and dust- and splash-proof
• Transfer measured points easily
• Range of 25 meters without receiver / 80 meters with receiver
• 2 laser lines / 4 laser points
• Accuracy 0.2 mm
• Self-levelling range: 4°
• Self-levelling time: < 3 s
• Laser line thickness at 5 meters: 2 mm
• Laser type: 635 nm / class 2
• Battery type: Li-Ion rechargeable (or AA 3 x 1.5V)
• Working time: up to 44 hours with Li-Ion battery
• Storage temperature: -25 to 70 °C
• Temperature during operation: -10 to 50 °C
• Thread Lino: 1/4
• Threaded wall clamp: 1/4 + 5/8
• Dimensions: 110 x 60 x 100
• Light in weight

Technical data

• Net weight (kg) 0.53
• Dimension width 60 mm
• Dimension depth 110 mm
• Dimension height 100 mm
• Protection IP54
• Battery LI-ION Rechargeable / AA 3 X 1.5V
• Range 25 M / 80M with laser receiver
• Self setting Horizontal and vertical

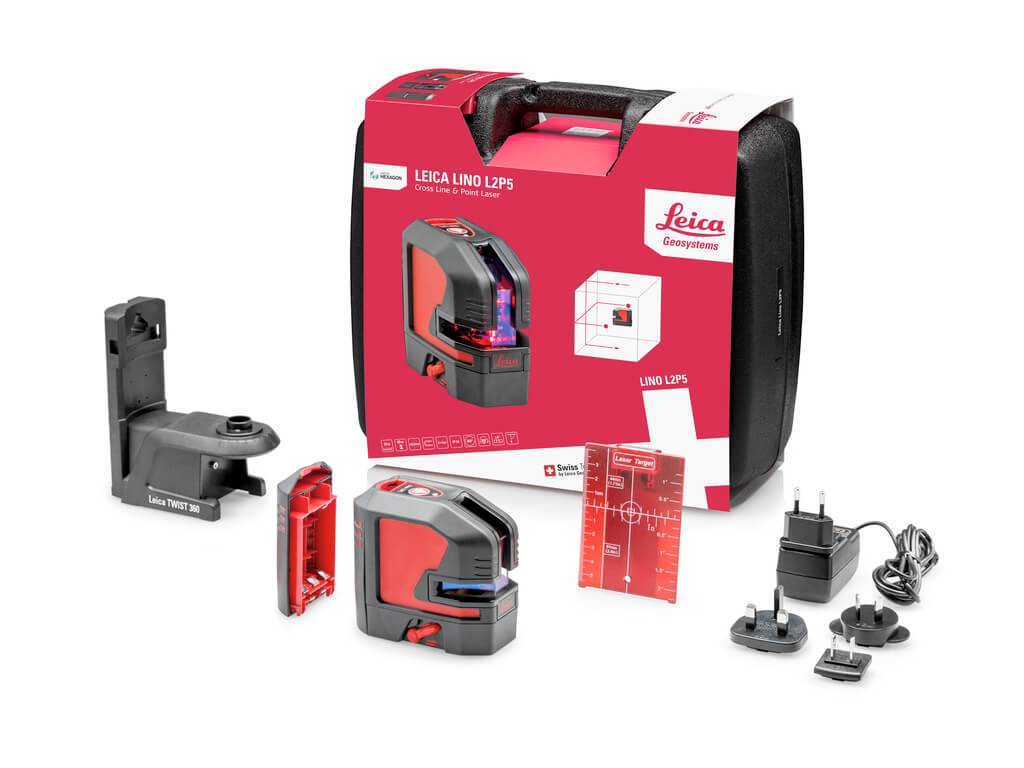

Scope of delivery

• Leica Lino L2P5-1
• Target brand
• Magnetic multifunction adapter
• Ball adapter for tripod
• Suitcase
• Calibration Report
