Mafell 924204 Chain Mortiser LS 103/35 Ec complete with chain set 28 x 35 x 150 mm (1 1/8 x 1 3/8 x 5 7/8 in.)

Mafell 924204 Chain Mortiser LS 103/35 Ec complete with chain set 28 x 35 x 150 mm (1 1/8 x 1 3/8 x 5 7/8 in.)

Description

• Unique lightweight at only 8.7 kg (19.2 lbs.). Chain mortising without the drag.
• The long guide plate has a large adjusting range and permits work on large timber workpieces.
• The tensioning system of the LS 103 Ec allows fast chain replacement. Even retightening of the chain without removing the chain guard is quick and easy.
• Optional accessories include the guide support stand for the LS 103 Ec, ideal for precise framing work, particularly indispensable for chain sets of 150 mm (5 7/8 in.)
• With the LS 103 Ec and the appropriate slot mortising attachment SG 230, SG 400 or SG 500, you can execute slots of up to 500 mm (19 11/16 in.). This is not possible with any other machine on the market!

Features

• Ergonomic handle and switch arrangement – for safe, efficient, energy-saving work
• Low machine weight – ideal for use on construction site
• Extremely powerful motor – for high efficiency and considerable time-saving.

Technical data

• Nominal power input : 2500 W
• Weight : 8,7 kg
• Universal motor : 230 V / 50 Hz
• Nominal No. of strokes – no load : 4050 1/min

Items included

• Attention: The guide support stand FG 150 is required when using the LS103 with the 150mm chain set
• Stop plate (200954)
• Allen key 4 mm (093074)
• Allen key 8 mm (093070)
• Mains cable 10 m (32.8 ft) (087612)

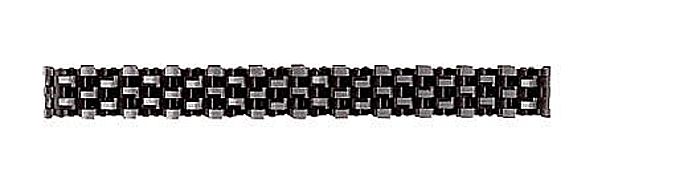

• Complete chain accessories set
