Max TRB94002 RB611T Twintier Braiding Rebar Tying Tool up to 32mm x 29mm with 1.0mm wire

Max TRB94002 RB611T Twintier Braiding Rebar Tying Tool up to 32mm x 29mm with 1.0mm wire

The RB611T "TWINTIER" is the 7th generation of Max REBAR-TIER products for larger rebar thicknesses up to 38mm x 16mm x 16mm and is the most advanced cordless braiding device. The TwinTier has three new innovative mechanisms that make it the most efficient braiding device on the market.

Features

• Double your working speed
• Wider application range from 16mm x 16mm up to 38mm x 16mm
• Dual wire feed mechanism increases productivity and reduces costs
• The retraction mechanism ensures that exactly the required amount of wire is dispensed for a strong connection
• The TwinTier can make 4000 connections per battery charge and up to 240 connections per spool of wire (on 13mm x 13mm reinforcing steel)
• Lower connection height
• The TwinTier wire bending mechanism (patent pending) allows for a lower joint height
• Less concrete is needed to completely cover a wire joint
• Thanks to the large jaw opening, the TwinTier can braid up to 32mm x 29mm rebar
• The slimline arm can be easily angled at 45 degrees for use in tight spaces

Specifications

• Weight 2.5 kg
• Dimensions 300mm(H) x 120mm(W) x 352mm(L)
• Minimum number of connections per coil 115
• Maximum number of connections per coil 205
• Suitable wire product TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga
• Suitable rebar sizes 16 x 16 - 32 x 29, up to 38 x 16 x 16, 25 x 25 x 16(Unit: mm)
• Connections per battery charge 4000
• Splicing speed Approx. 1/2 sec
• Braid windings 2
• Battery charge time Fully charged after 65 minutes
• Accu JPL91440A

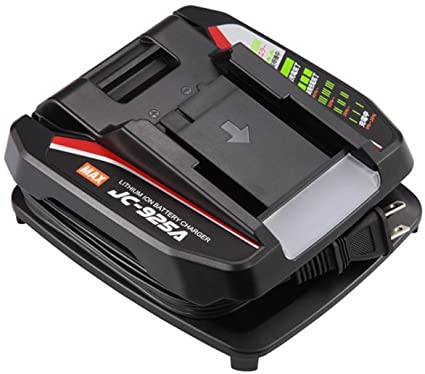

• Charger JC925A

Includes

• 2 x Battery 14,4 Volt
• 1 x Lader
• 1 x Storage case
