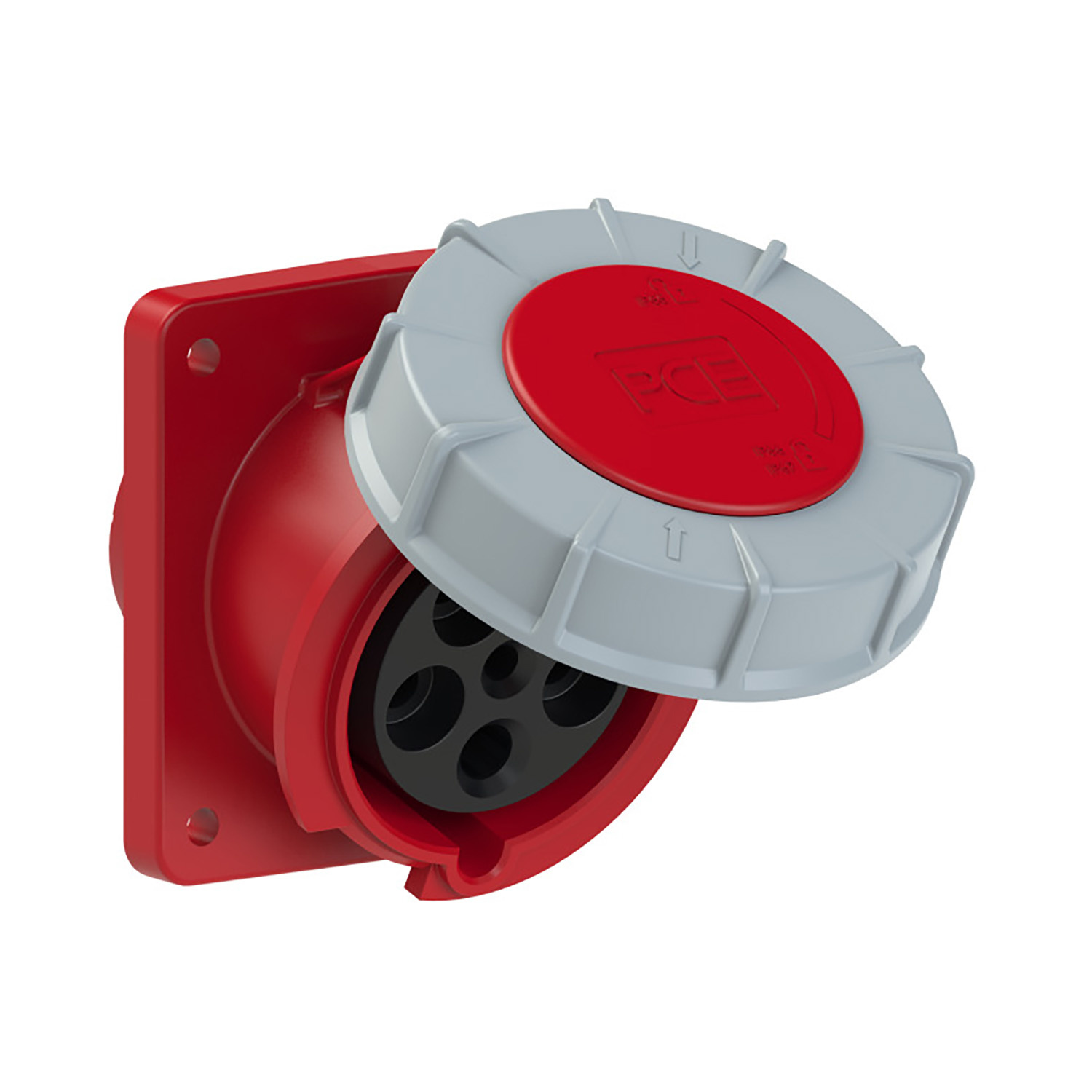

PCE 107871 CEE flush mount Wall outlet diagonal 63A 5p 400V 6h red

PCE 107871 CEE flush-mounted Wall outlet slanted 63A 5p 400V 6h red

Special features.

• Impact-resistant polyamide 16A CEE wall outlets in accordance with IEC 60309.
• Standard equipped with nickel-plated contacts for better corrosion protection, and to prevent contact with brass (from assembly to recycling).
• From 63A standard in protection class IP67 with copper-beryllium laminated contacts for low contact pressure and very low transition resistance.

Technical data

• Drill hole spacing horizontally: 80mm
• Flange size horizontal: 100mm
• Drill hole spacing vertically: 88mm
• Flange size vertical: 112mm
• Surface treatment contacts: Nickel-plated
• Cable entry: None
• Insertion direction: Angled (corner)
• Connection technology: Screw clamp
• Degree of protection: (IP)IP67
• RAL number: 3000
• Hours: 6h
• Number of poles: 5
• Nom. (measuring) frequency: 50 - 60 Hz
• Nom. voltage: 346 - 415 V
• Voltage according to EN 60309-2: 400 V (50+60 Hz) red
• IEC current rating: 63 A
