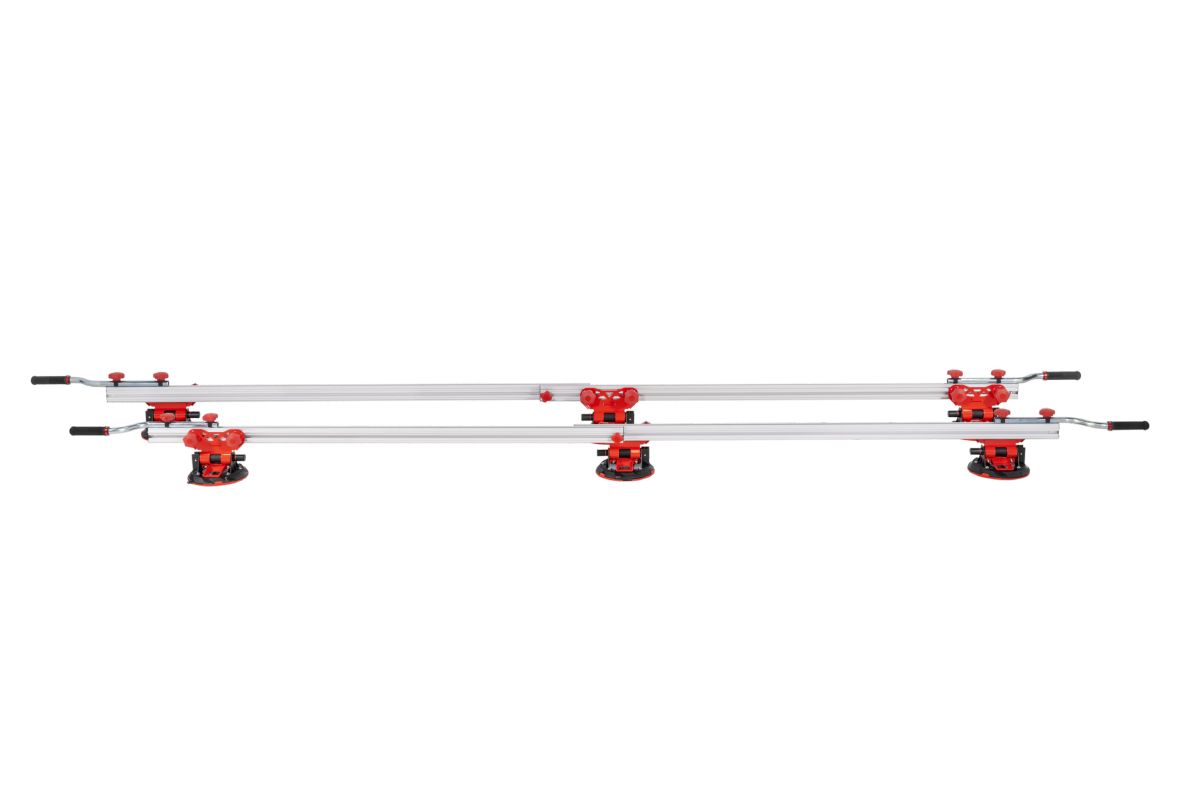

Rubi 18976 Slim Easy Trans Plus Tile Transport System

Rubi 18976 Slim Easy Trans Plus Tile Carrying System

With the SLIM EASY TRANS PLUS carrying system, ceramic slabs with a length of up to 320 cm and a maximum thickness of 6 mm can be handled. The maximum load is 80 kg (120 kg with crossbar set).

Special features

• The SLIM EASY TRANS PLUS transport system is designed for handling slabs with a maximum thickness of 6 mm. Thanks to the system of retractable reinforced aluminum profiles, the SLIM EASY TRANS PLUS can handle ceramic sheets up to a maximum length of 320 cm. These retractable profiles can be adjusted in length from 170 cm to a maximum of 320 cm.
• The handles, which are also adjustable, feature soft-grip grips for greater ergonomics and comfort during handling. The handles of the SLIM EASY TRANS PLUS slide through the top slot of the retractable guides, facilitating storage and transport of the entire system.

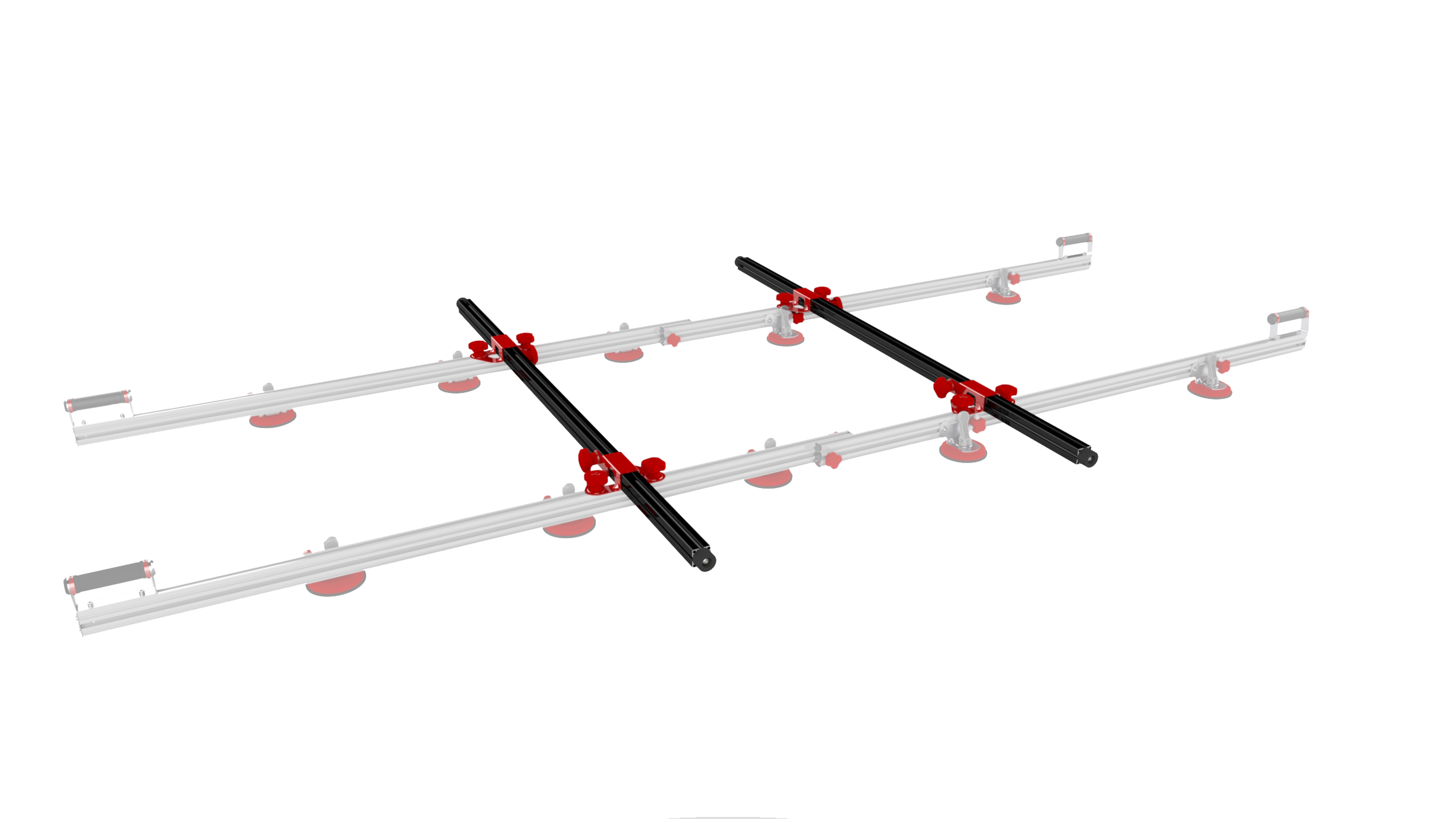

• The carrying capacity of the SLIM EASY TRANS PLUS is 80 kg, but if the DWARSBALKENSET (ref. 18819) is added, the carrying capacity increases to a maximum of 120 kg. By using the DWARSBALKENSET (ref. 18819) on the SLIM EASY TRANS PLUS, the system is also made compatible with the SLAB TROLLEY (ref. 18934).
• The SLIM EASY TRANS PLUS is equipped with 6 vacuum suction cups with a diameter of 20 cm and high carrying and holding capacity. The suction cups can be moved and their position adjusted to the size of the plate. The vacuum pad provides additional safety and reliability in securing the material. NOTE: Adding more suction cups does not increase the maximum load capacity of the SLIM EASY TRANS PLUS. The suction cups of the SLIM EASY TRANS PLUS are not compatible with the SLIM EASY TRANS (ref. 18910), and conversely, the suction cups of the SLIM EASY TRANS PLUS are also not compatible with the SLIM EASY TRANS PLUS.
• RUBI recommends the use of the TROLLEY and individual safety elements when handling heavy loads. The handling of these materials should be performed by the number of persons required according to the values for the maximum load of one person.

Technical data.

• Net weight without packaging: 26 kg
• Length Width Height: 1654x254x228 cm
• Easy: Yes
• Easy fix: Yes
• Ergonomic: Yes
