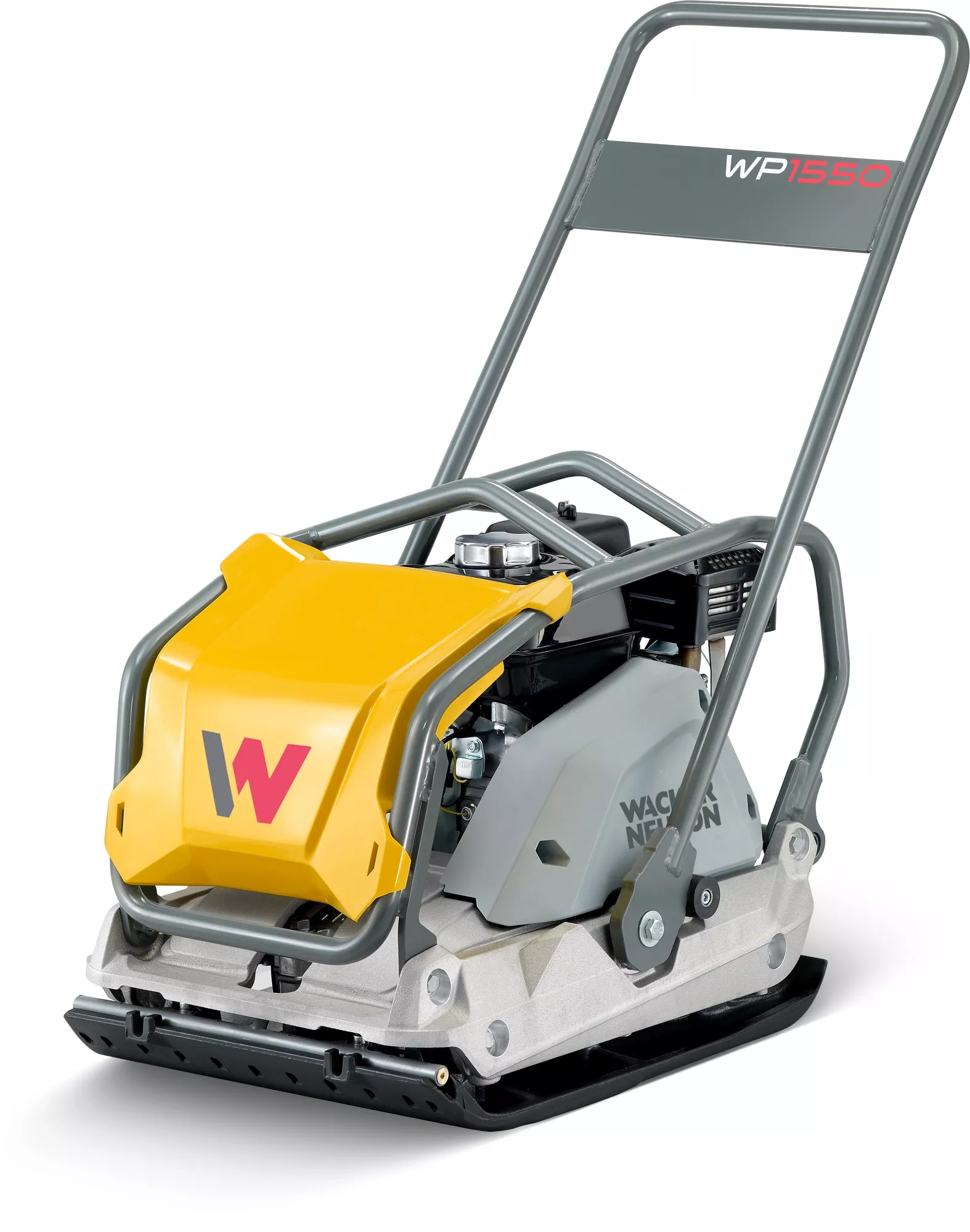

Wacker Neuson 5100062423 WP1550A Vibration Plate Gasoline 15 kN

Wacker-Neuson 5100062423 WP1550A Vibration Plate Gasoline 15 kN

Special features

• The vibratory plates of the WP series are powerful professional devices for compaction of asphalt and mixed soils, as well as for intrusion of element paving. They can be effortlessly turned and turned thanks to the center-mounted guide bracket and the specially shaped base plate. Thanks to their robust construction, they are well suited for long-term professional use, for example for compacting gravelly sandy soils for streets and parking lots and creating perfect asphalt surfaces. Using the wheel set (accessory), the Wp series vibratory plates can be moved to the desired location on the construction site easily and without great effort.

Highlights

• Low-maintenance design with low total cost of ownership (TCO): The V-belt is protected from damage by a robust housing and can be easily re-tensioned. This reduces wear and tear, saves replacement costs and achieves a long service life. The machines from 13 kN upwards are equipped with a cylindrical roller bearing. This is strong and achieves a longer service life than a ball bearing.
• Stable protection frame for motor and water tank(optional): The stable protection frame protects the motor and water tank from damage. This saves repair costs. The tubular frame can also be used as a guide handle when operating the machine sideways, which is ideal when compacting along edges.
• Optimally shaped base plate: The rounded edges minimize the formation of load edges when turning the vibratory plate and ensure a high quality asphalt surface.
• High advance speed: The high advance speed ensures high productivity.
• Base plate made of cast spherical graphite (GJS700): The base plate consists of a very robust, durable material and thus achieves a long service life. The high-quality material of the base plate contributes to perfect surface quality in asphalt compaction.

Technical Data

• Model variations WP1550A
• Engine Honda GX160-UH2-QC-9SD
• Centrifugal force 15 kN
• Soil capacity 870 m2/h
• Headway 29 m/min
• Climbing power 36.4%
• Length of base plate 582 mm
• Width 500 mm
• Width of base plate 500 mm
• Height 963 mm
• Safety frame height 551 mm
• Base plate thickness 10 mm
• Operating weight 89 KG
• Ground clearance 551 mm
• Effective power 3.6 kW
• Rated motor speed 3,600 1/min
• HAV vibration value (average value) 5.9 m/s2
• HAV vibration value (standard) EN 500-4

Scope of delivery

• Manual
