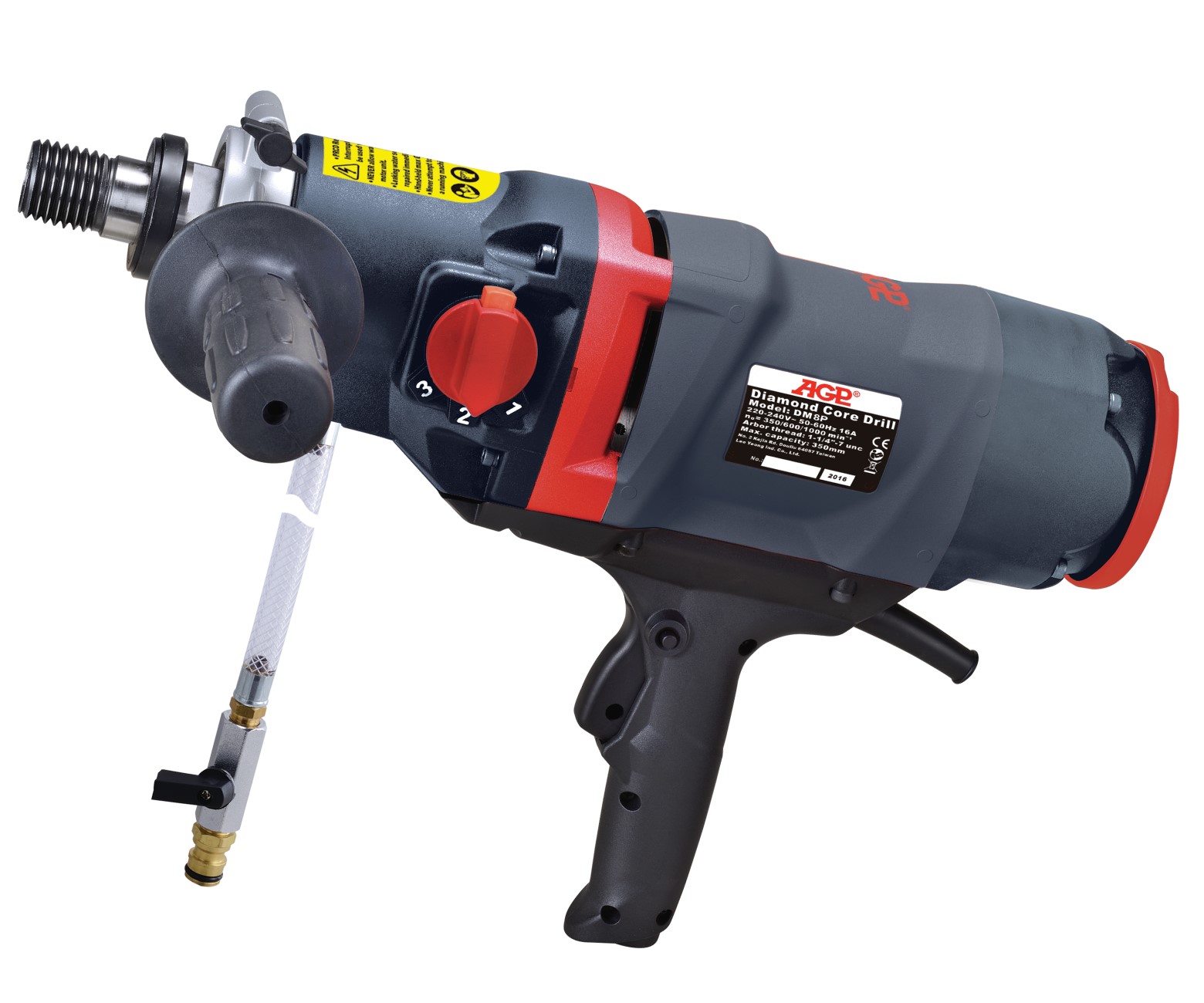

AGP 781.1020 DM8P Diamond Drilling Machine Wet 2500 Watt

AGP DM8P Diamond Drilling Machine Wet 2500 Watt

Special features

• A heavy-duty 2500 W 3-speed wet drill motor for drilling up to 202 mm. Equipped with constant speed electronics for even drilling speed and longer life of the drilling crown.
• High power motor with constant speed electronics.
• Smart electronic control with soft-start, thermal protection and overload protection.
• 3-speed oil bath gearbox with clutch.
• Highly visible LED load indicator for optimizing drilling efficiency.
• Anti-seize ring to prevent core bits from getting stuck on the spindle.
• Side handle in line with spindle centerline for best control.

Technical data

• Power 2500 W (220 V)
• Voltage, Frequency 220-240 V~ 50-60 Hz
• No load speeds (/min) 480 / 1050 / 2200
• Rated load speeds (/min) 320 / 700 / 1450
• Capacity-wet Hand-held: 82 mm (3-1/4")
• Tripod-mounted: 202 mm (8")
• Spindle thread External / Internal 1-1/4" UNC male & 1/2" BSP female
• Neck Diameter 60 mm
• Insulation Class I with PRCD / GFCI
• Dimensions (L x W x H) 463 mm x 127 mm x 310 mm
• Weight 7.3 kg (16 lb)

Scope of delivery

• Side handle
• PRCD switch
• M32 wrench
• Suitcase
