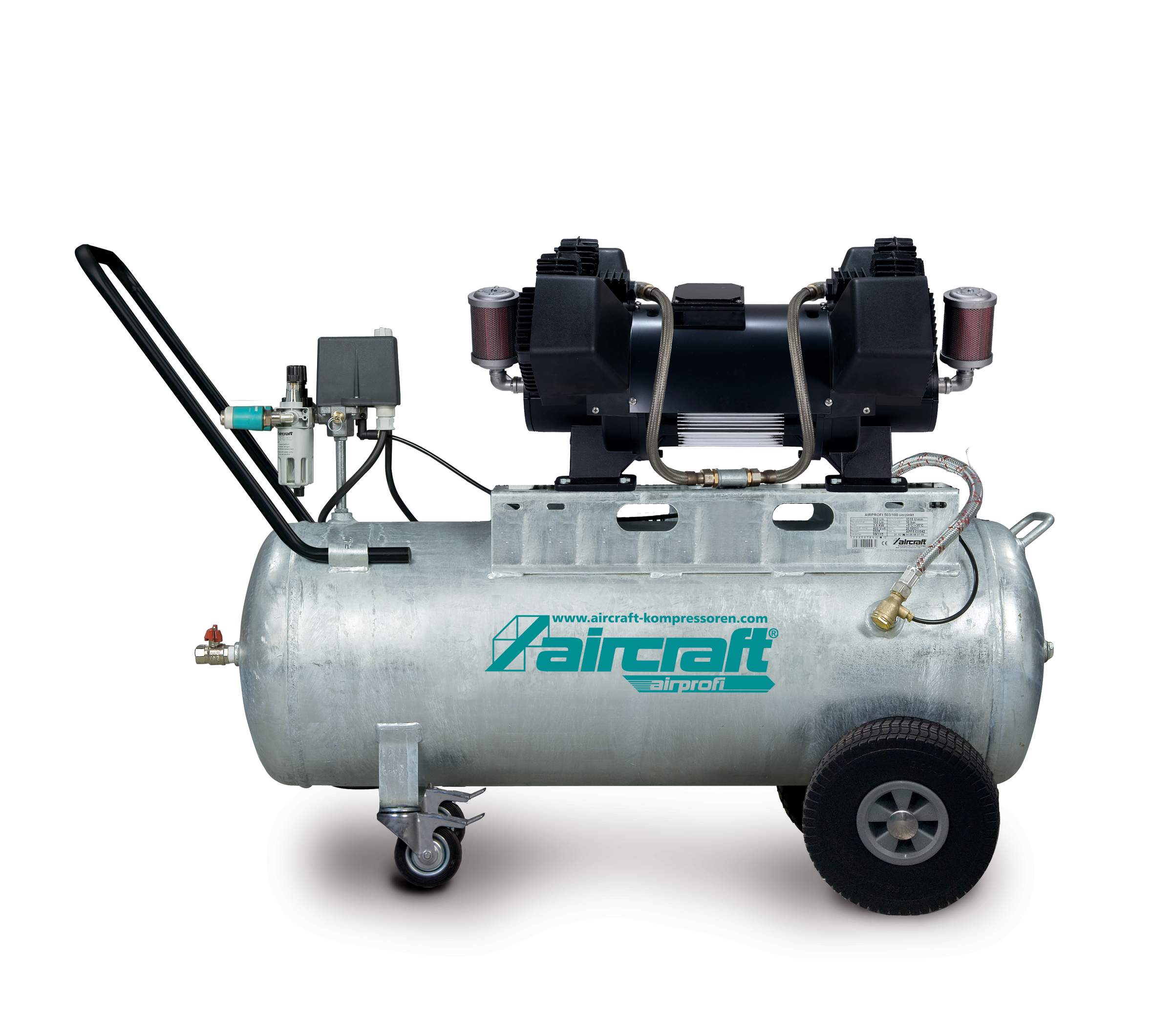

Aircraft 712015607 AIRPROFI600/200OFPRO Compressor low-noise oil-free 200L 400V

Aircraft AIRPROFI600/200OFPRO Compressor low-noise oil-free 200L 400V

Features

• Professional high-flow mobile oil-free compressor with 200-liter galvanized tank for the demanding user.

Trumps

• Air is blown through the cooling chambers of the cylinder by means of a fan; this ensures optimal cooling
• Large pistons, movably mounted, therefore 60% more power compared to tilt piston systems
• Cylinder running surfaces with a high-precision, micro-smooth surface to minimize friction
• The high-quality piston, eg piston ring made of a special graphite-Teflon-carbon mixture has a much longer service life than a simple Teflon piston ring
• Galvanized 200-liter tank - 15-year warranty against rusting through
• High quality maximum equipment
• Made in Europe

Applications

• Designed for demanding continuous use when oil-free and clean compressed air is required
• Food Industry

Technical data

• Voltage V 3x400
• Sucked air l/min 510
• Lubrication System Oil-free
• Released air l/min 300
• Max pressure bar 10
• Power kW 2.3
• Tank capacity l 200
• Cylinders/Stages 4/1
• Speed rpm 1400
• Noise level - LPA (1m) DINISO3744 dB(A) 75
• Weight kg 163.00
• Dimensions (l x w x h) mm 1120x500x1030

Scope of delivery

• Filter pressure regulator for stepless adjustment of the operating pressure, with simultaneous separation of dirt, oil and condensate
• One compressed air outlet for filtered compressed air, filtered and lubricated compressed air and a direct outlet on the compressed air tank
• Two handy safety quick-release couplings, one-hand operated safety couplings according to DIN EN983 from AIRCRAFT as the first manufacturer
• High quality CONDOR pressure switch
• One manometer each for tank and working pressure
• Simple condensate drain via ball valve
• Flexible armored hose line with heat protection prevents vibration ruptures
• Internally and externally hot-dip galvanized, corrosion-protected compressed air tank
• Additional transport handle directly on the tank
• 2 PU foam leakproof wheels
• Stable swivel base with parking brake
