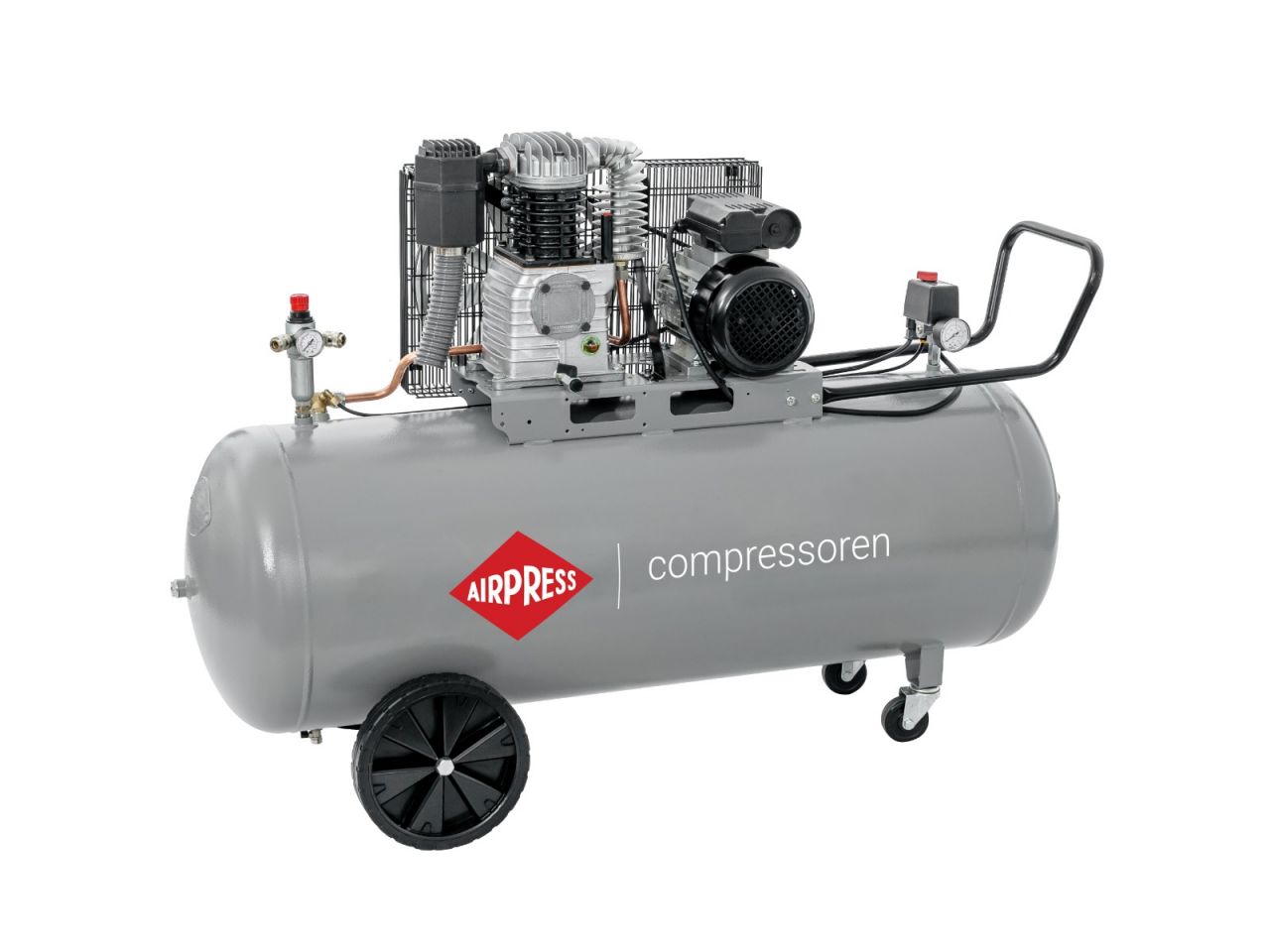

Airpress 360663 Compressor HL 425-200 Pro 10 bar 3 hp/2.2 kW 317 l/min 200 l

Airpress 360663 Compressor HL 425-200 Pro 10 bar 3 hp/2.2 kW 317 l/min 200 l

Description

• The HL 425-200 Pro compressor is an oil-lubricated compressor equipped with three universal quick connectors, one on the pressure vessel for maximum pressure and the other two for reduced pressure on the oil/water separator.
• The compressor has a weight of 115 kilograms.
• The oil-lubricated compressor has a 3.0 hp/2.2 kW motor, features 2 cylinders and has a speed of 1250 RPM. The cut-in pressure is 8 bar, the maximum pressure is 10 bar and the compressor has an effective capacity of 280 l/min.
• With the pressure reducing valve, identified by the red dial on the oil/water separator, you quickly and easily set the desired working pressure that can be read on the pressure gauge.
• The pressure gauge at the pressure switch shows the pressure in the pressure vessel

Technical data

• Weight (kg) 115.00
• Length, Width, Height (cm) 142 x 57 x 98
• Load (labor/rest %) 50/50
• Start Direct
• Drive V-belt driven
• Cylinders 2
• Voltage (V) 230 V / 50 Hz / 1 Ph
• Pressure vessel Yes
• Pressure vessel capacity (l) 200
• Galvanized pressure vessel No.
• Suction capacity (l/min) 400
• Effective capacity (l/min) 280
• Effective capacity (m3/h) 19.02
• Switch-on pressure (bar) 8
• Maximum pressure (bar) 10
• Noise level dB(A) (0 m) 97
• Noise level dB(A) (4 m) 77
• Noise level dB(A) (7 m) 72
• Sound attenuated No
• Air connection (") EURO/ORION
• Number of air connections 2 - 3
• Direct air connection (") 1/2 female thread
• Number of reducible air connections 2
• Stairs 1
• Oil-free No
• Filter with reducing valve No
• Pump speeds (RPM) 1250
• Power (HP/kW) 3.0 hp / 2.2 kW
• Wheels Yes
• Pump type K17C
• Intermediate cooler No
• Aftercooler No

Scope of delivery

• On Pallet
