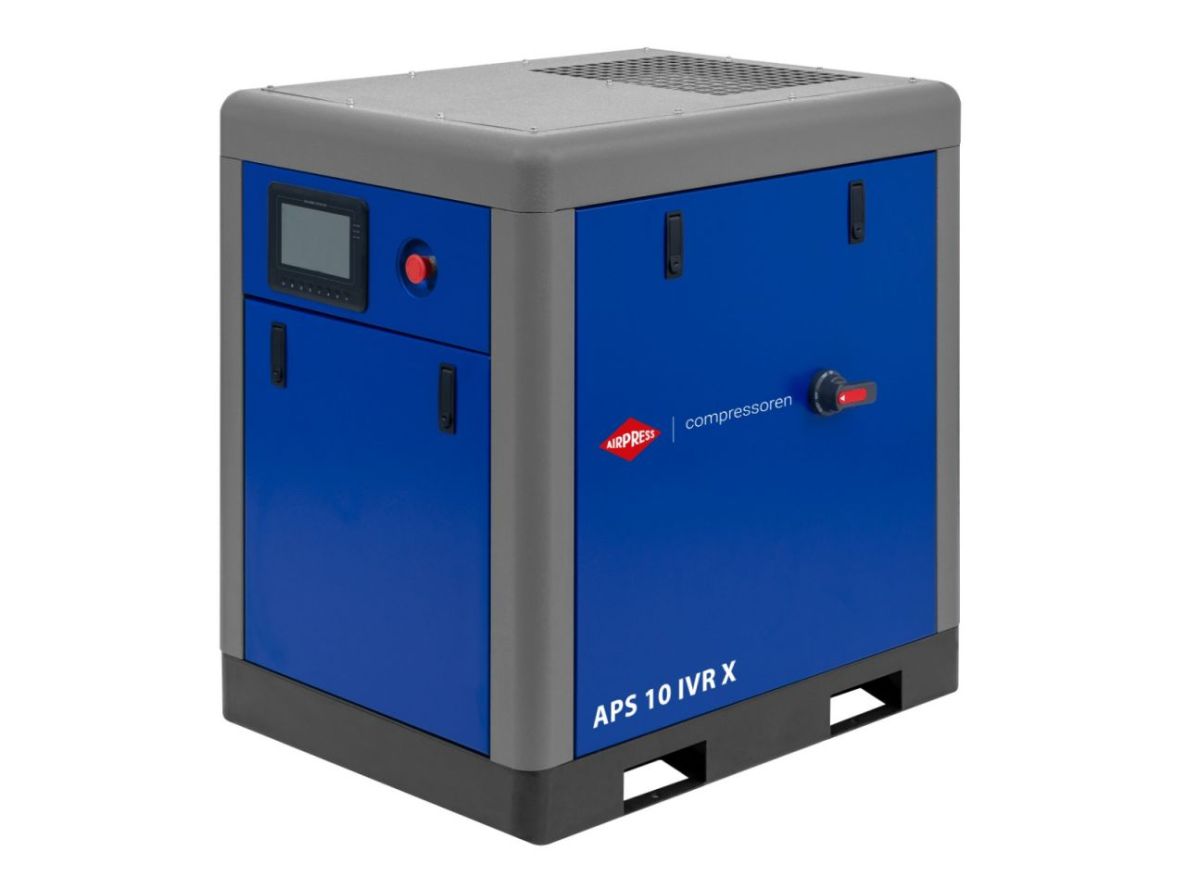

Airpress 369410-IVR APS 10 IVR X Screw compressor 400 Volt

Airpress 369410-IVR APS 10 IVR X Screw compressor 400 Volt

Features

• A compressor with great qualities and features
• This7.5 kW, direct-drive screw compressor features the latest technologies
• For example, this machine has aPermanent magnetmotor for optimalenergy saving(up to 8% higher than a standard asynchronous motor) and has awifi moduleto remotely monitor and control the compressor
• The yield is maximum1120 litres per minute
• All parameters can be read and set in the menu of the very comprehensive but clear controller which is equipped with a full color touch screen
• This allows each APS 10 X IVR to be adjusted on a situation-by-situation basis formaximum efficiency
• All components are easily accessible when the panels are removed for maintenance
• The machine is carefully designed so that fewer parts require maintenance
• The 3,000-hour service interval also reduces maintenance costs
• This machine is very suitable for small to medium sized businesses such as garages

X-Series Compressoren

• By continuously investing in the development of our products, the Airpress Group presents a new range of screw compressors
• The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: fixed speed or speed controlled
• Machines from 15 kW are also available with a two-stage screw block
• These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as single units, mounted on a tank or mounted on a tank and equipped with a compressed air dryer
• Compressors of the X series are characterized by a new generation of screw blocks
• The direct drive avoids the losses caused by the transmission
• Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimum cost
• Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary

Specifications

• Power hp / kW 10 / 7.5
• Stairs 1
• Flow rate at 7 bar (l/min) 1120
• Flow rate at 8 bar (l/min) 1050
• Flow rate at 10 bar (l/min) 920
• Refrigerant Air
• Drive Direct
• Start inverter
• Length, Width, Height (mm) 910 x 700 x 925
• Weight (kg) 200
• Touchscreen operation
• Display Color
• Sound level dB(A) 63
• Air connection 3/4

Includes

• Manual
• On Pallet
• Supplied without boiler and connection material
