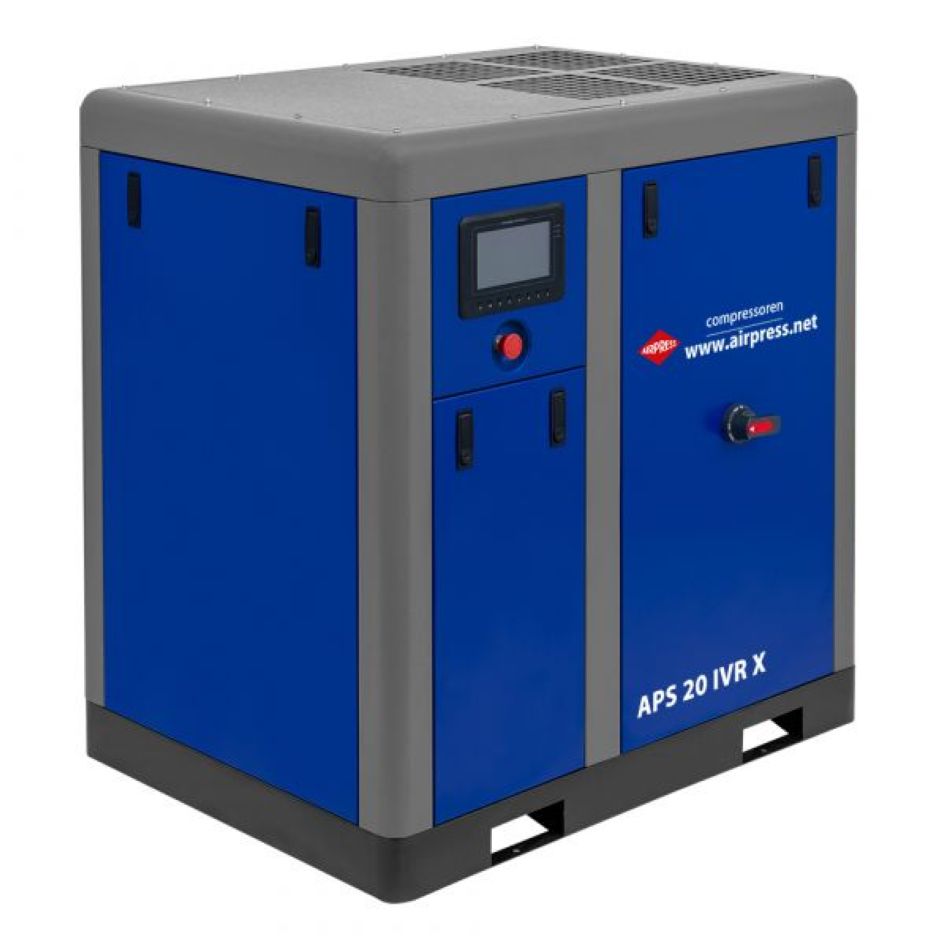

Airpress 369420-IVR APS 20 IVR X Screw compressor 400 Volt

Airpress 369420-IVR APS 20 IVR X Screw compressor 400 Volt

Features

• An Airpress compressor with great qualities and features
• This 15 kW, direct-drive screw compressor with permanent magnet motor represents energy savings of up to 8% compared to an asynchronous motor
• Due to the direct coupling between the motor and the screw block, there is also a saving of 2-3% compared to a belt driven machine
• The compressor has a wifi module to the compressor remotely to monitor and control
• The full colour touch screen makes it very easy to adjust the machine to the situation
• The maximum output is 2280 litres per minute
• Because there are panels all around, the machine is very easy to access
• The 3,000-hour service interval also reduces maintenance costs
• This machine is very suitable for medium-sized and large companies that use an average of around 2000 litres per minute

X-Series Schroefcompressors

• By continuously investing in the development of our products, the Airpress Group presents a new range of screw compressors
• The screw compressors are available from 5.5 kW to 37 kW
• The APS X-series is available in two versions: fixed speed or speed controlled
• Machines from 15 kW are also available with a two-stage screw block
• These versions have increased performance with the same power consumption as a single-stage version
• Depending on the demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer
• Compressors of the X series are characterised by a new generation of screw blocks. Due to the direct drive, transmission losses are avoided
• Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimum cost
• Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary

Specifications

• Power hp / kW 20 / 15
• Stairs 1
• Flow rate at 7 bar (l/min) 2280
• Flow rate at 8 bar (l/min) 2130
• Flow rate at 10 bar (l/min) 1870
• Refrigerant Air
• Drive Direct
• Start inverter
• Length, Width, Height (mm) 1120 x 820 x 1150
• Weight (kg) 320
• Touchscreen operation
• Display Color
• Sound level dB(A) 63
• Air connection 3/4

Includes

• Manual
• Supplied without boiler and connection material
• Op planks
