Altrex C003100 MiTower Connect Extension Set 4m wood platform length 185

Altrex C003100 MiTower Connect Extension Set 4m timber platform length 185

Special features

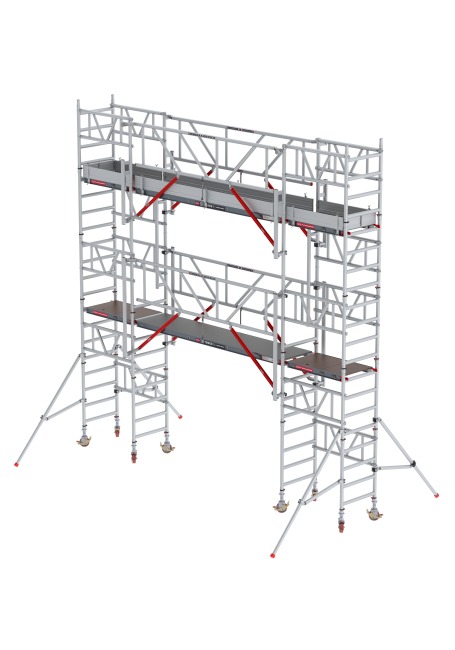

• With the MiTOWER CONNECT extension set you can easily create a work bridge at 4.2 or 6.2 meters working height between two MiTOWER (PLUS) mobile scaffolds
• Completely assembled by one person
• The MiTOWER CONNECT consists of special guardrail posts (301227)
• For the work bridge at 6.2 meters working height, coupled tubes (301228) and walk-through frames (301207) are also included here
• In combination with standard parts of RS TOWER 5 mobile scaffold towers (not included with the MiTOWER CONNECT) complete the work bridge.

Technical data

• Maximum load: 250 kg
• Maximum working height: 4.2 m
• Minimum number of persons in the assembly: 1
• Maximum number of persons on platform: 1
• Platform assembly: single
• Platform type: Wood
• Maximum wind load: 6 bft

Scope of delivery

• 1x Wooden platform - 1.85 m length without hatch - RS TOWER 5 (304420)
• 1x Side plank set 0.75 x 1.85 m - aluminum - RS TOWER 5 (305801)
• 2x Edge board connecting set (4 pieces) - aluminum - RS TOWER 5 (305809)
• 2x Safe-Quick® front guardrail - 1.85 m length - RS TOWER 4 & 5 (360265)
• 4x Handrail post MiTOWER Connect (301227)
