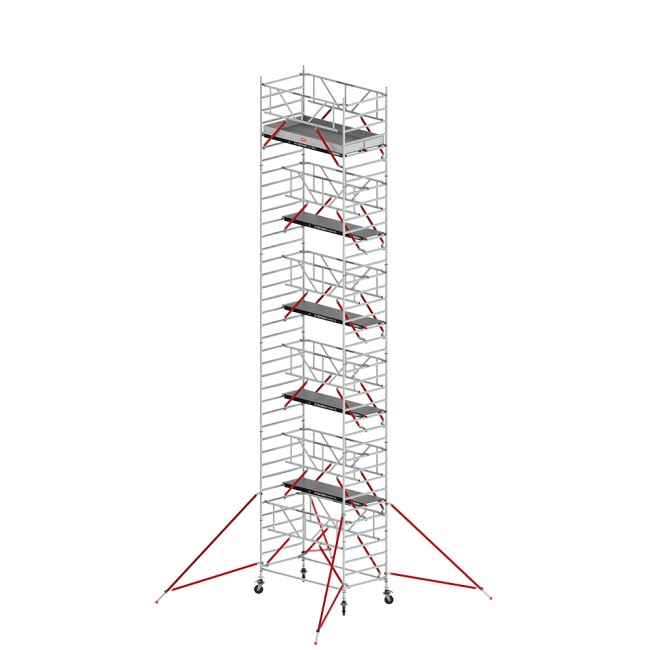

Altrex T520045 RS TOWER 52-S Rolling scaffold 12.2 Timber platform length 185

Altrex T520045 RS TOWER 52-S Rolling scaffold 12.2 Timber platform length 185

Special features

• RS TOWER 52 - Wide mobile scaffold tower
• The system with unprecedented possibilities
• The RS TOWER 52 is the rolling scaffold you can build on, both inside and outside
• The system can be expanded with all components from the RS TOWER 5 series
• Moreover, you can connect the scaffold to other applications, such as a walkway or fall-back console.
• This makes your rolling scaffold not only strong and safe, but also very flexible.
• You create your own customization with the RS TOWER 52
• Up to 10.2 meters outside and 14.2 meters inside
• With wide frames of 1.35 meters and a load of up to 250 kg per platform, there is room for two persons and the necessary tools.
• The platform is available in lengths: 1.85, 2.45 or 3.05 meters
• Welded anti-slip rungs and fixed locking pins make the frame additionally very strong and 100% reliable
• With the Safe-Quick® version you always have all-round protection and are always safe.

Technical data

• Maximum load: 750 kg
• Maximum standing height: 10.2 m
• Maximum working height: 12.2 m
• Product height in use position: 11.44 cm
• Free-standing floor area: 6.43 x 3.26 m
• With stabilizer: Yes
• Step/rung distance: 28
• Assembly method: SafeQuick
• Minimum number of persons assembled: 2
• Maximum working height indoors: 12.2 m
• Maximum working height outdoor (m): 10.2 m
• Scaffold length: 1.85 m
• Scaffold width: 1.35 m
• Platform length: 1.85 m
• Maximum number of persons on platform: 2
• Platform Assembly: Double
• Platform type: Wood
• Maximum platform height indoor: 10.2 m
• Maximum platform height outdoor: 8.2 m
• Frame width: 1.35 m
• Maximum wind load: 6 bft
• Access class: XXXD

Scope of delivery

• 2x Assembly frame - 1.35 m width - 4 rungs - RS TOWER 5 (301604)
• 10x Frame - 1.35 m width - 7 rungs - RS TOWER 5 (301607)
• 2x Horizontal strut - 1.85 m length - uncoated - RS TOWER 4 & 5 (303704)
• 5x Wooden platform - 1.85 m length with trapdoor - RS TOWER 5 (304410)
• 1x Wooden platform - 1.85 m length without hatch - RS TOWER 5 (304420)
• 1x Side plank set 1.35 x 1.85 m - aluminum - RS TOWER 5 (305804)
• 12x Safe-Quick® front guardrail - 1.85 m length - RS TOWER 4 & 5 (360265)
• 4x Wheel stand with wheel (1 piece) - Ø 200 mm - lockable - RS TOWER 5 (511230)
• 4x Triangle stabilizer Easy-lock® - red - RS TOWER 5 (513010)
