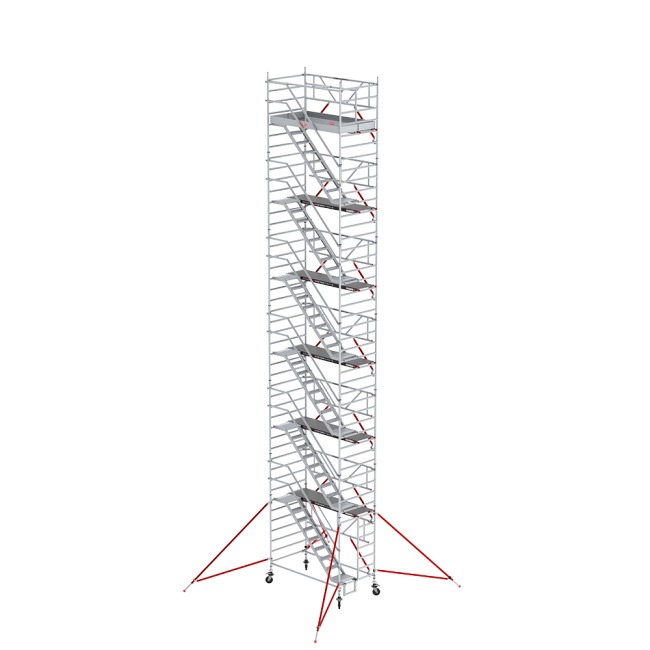

Altrex T530035 RS TOWER 53-S Rolling scaffold 14.2m Wood platform length 185

Altrex T530035 RS TOWER 53-S Rolling scaffold 14.2m Wood platform length 185

Special features

• The RS TOWER 53 is a rolling scaffold with built-in stair parts.
• Handy and safe if you often have to go up and down with, for example, tools
• The stepladder can be used both indoors and outdoors
• The system can be expanded with all components from the RS TOWER 5 series
• Moreover, you can link the scaffold to other applications, such as a walkway or fall-back console
• This makes your staircase scaffolding not only strong and safe, but also very flexible.
• You can create your own customized solutions with the RS TOWER 53 staircase scaffold
• Up to a height of 14.2 meters indoors and 10.20 meters outdoors
• With wide frames of 1.35 meters and a load of up to 250 kg per platform, this staircase scaffold is ideal if you often have to carry materials or tools up and down the scaffold
• All-round welded anti-slip rungs and fixed locking pins also make the frame rock-solid and 100% reliable.

Technical data

• Maximum load: 750 kg
• Maximum standing height: 12.2 m
• Maximum working height: 14.2 m
• Product height in use position: 13.44 cm
• Free-standing floor area: 6.43 x 3.26 m
• With stabilizer: Yes
• Step/rung distance: 28
• Assembly method: SafeQuick
• Minimum number of persons assembled: 2
• Maximum working height indoors: 14.2 m
• Maximum working height outdoor (m): 10.2 m
• Scaffold length: 1.85 m
• Scaffold width: 1.35 m
• Platform length: 1.85 m
• Maximum number of persons on platform: 2
• Platform assembly: single
• Platform type: Wood
• Maximum platform height indoor: 12.2 m
• Maximum platform height outdoor: 8.2 m
• Frame width: 1.35 m
• Maximum wind load: 6 bft
• Access class: AXXX

Scope of delivery

• 11x superstructure frame 135-28-7 RS5 (301607)
• 2x Mounting frame 135-28-4 RS5 wide (301604)
• 1x Walk-through frame wide 135-28-7 RS5 (307008)
• 4x Wheel stand with wheel Ø 200 mm RS5 (511230)
• 6x Wooden platform 185 with hatch RS5 (304410)
• 7x Safe-Quick®2 Guardrail 1.85 m RS (360265)
• 3x Horizontal strut 185-4 RS (303704)
• 4x Easy-Lock® red coated triangular stabilizer RS5 (513010)
• 1x Side plank set alu 135-185 RS5 (305804)
• 6x Mobile scaffold ladder 1.85 m RS5 (306000)
• 12x handrail brace step scaffold 1.85 m RS5 (306002)
• 1x Vide banister step scaffold 1.85 m RS5 (306001)
• 1x Brace for stepping on mobile scaffold tower (306017)
