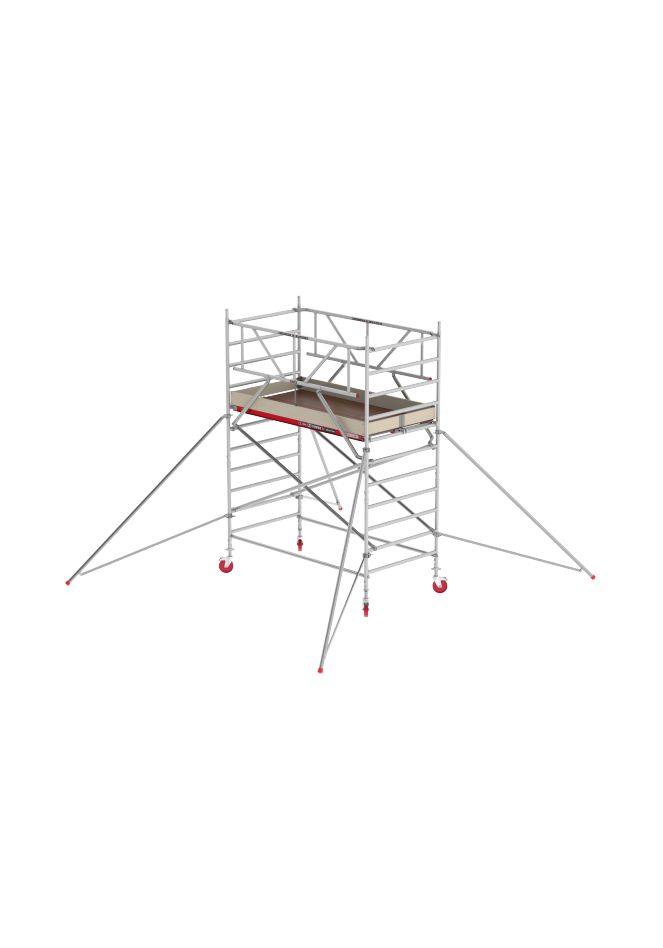

Altrex TX420019 RS TOWER 42-S Rolling scaffold 4.2m Wood platform length 245

Altrex TX420019 RS TOWER 42-S Rolling scaffold 4.2m Wood platform length 245

Special features

• RS TOWER 42 - Wide rolling scaffold
• The RS TOWER 42 is a complete rolling tower
• Perfect for the professional
• The pinched claw-rail tube connections make the RS TOWER 42 strong
• The scaffold takes you to a maximum working height of 10.20 meters outdoors and 14.20 meters indoors
• All-welded anti-slip rungs make the frame rock-solid and 100% reliable
• With wide frames of 1.35 meters and a load of up to 250 kg per platform, this rolling scaffold is suitable for two people to work on it
• The platform is available in the length: 1.85 or 2.45
• With the Safe-Quick® version you always have all-round protection and are always safe.

Technical data

• Maximum load: 750 kg
• Maximum standing height: 2.2 m
• Maximum working height: 4.2 m
• Product height in use position: 3.44 cm
• Free-standing floor area: 6.56 x 3.05 m
• With stabilizer: Yes
• Step/rung distance: 28
• Assembly method: SafeQuick® + Braces
• Minimum number of persons to assemble: 2
• Maximum working height indoors: 4.2 m
• Maximum working height outdoor (m): 4.2 m
• Scaffold length: 2.45 m
• Scaffold width: 1,35 m
• Platform length: 2.45 m
• Maximum number of persons on platform: 2
• Platform Assembly: Double
• Platform type: Wood
• Maximum platform height indoor: 2.2 m
• Maximum platform height outdoor: 2.2 m
• Frame width: 1.35 m
• Maximum wind load: 6 bft
• Access class: XXXD

Scope of delivery

• 2x Assembly frame - 1.35 m width - 4 rungs - RS TOWER 4 (303340)
• 2x Frame - 1.35 m width - 7 rungs - RS TOWER 4 (303370)
• 2x Horizontal brace - 2.45 m length - uncoated - RS TOWER 4 & 5 (303706)
• 4x Diagonal strut - 2.45 m length - uncoated - RS TOWER 4 & 5 (303716)
• 1x Wooden platform - 2.45 m length with hatch - RS TOWER 4 (305110)
• 1x Wooden platform - 2.45 m length without hatch - RS TOWER 4 (305120)
• 1x Edge board set 1.35 x 2.45 m - wood (305585)
• 2x Safe-Quick® front guardrail - 2.45 m length - RS TOWER 4 & 5 (360266)
• 4x Wheel post with wheel (1 piece) - Ø 200 mm - lockable - RS TOWER 4 (511216)
• 4x Triangle stabilizer - uncoated - up to 4.2 m platform height - RS TOWER 4 (513060)
