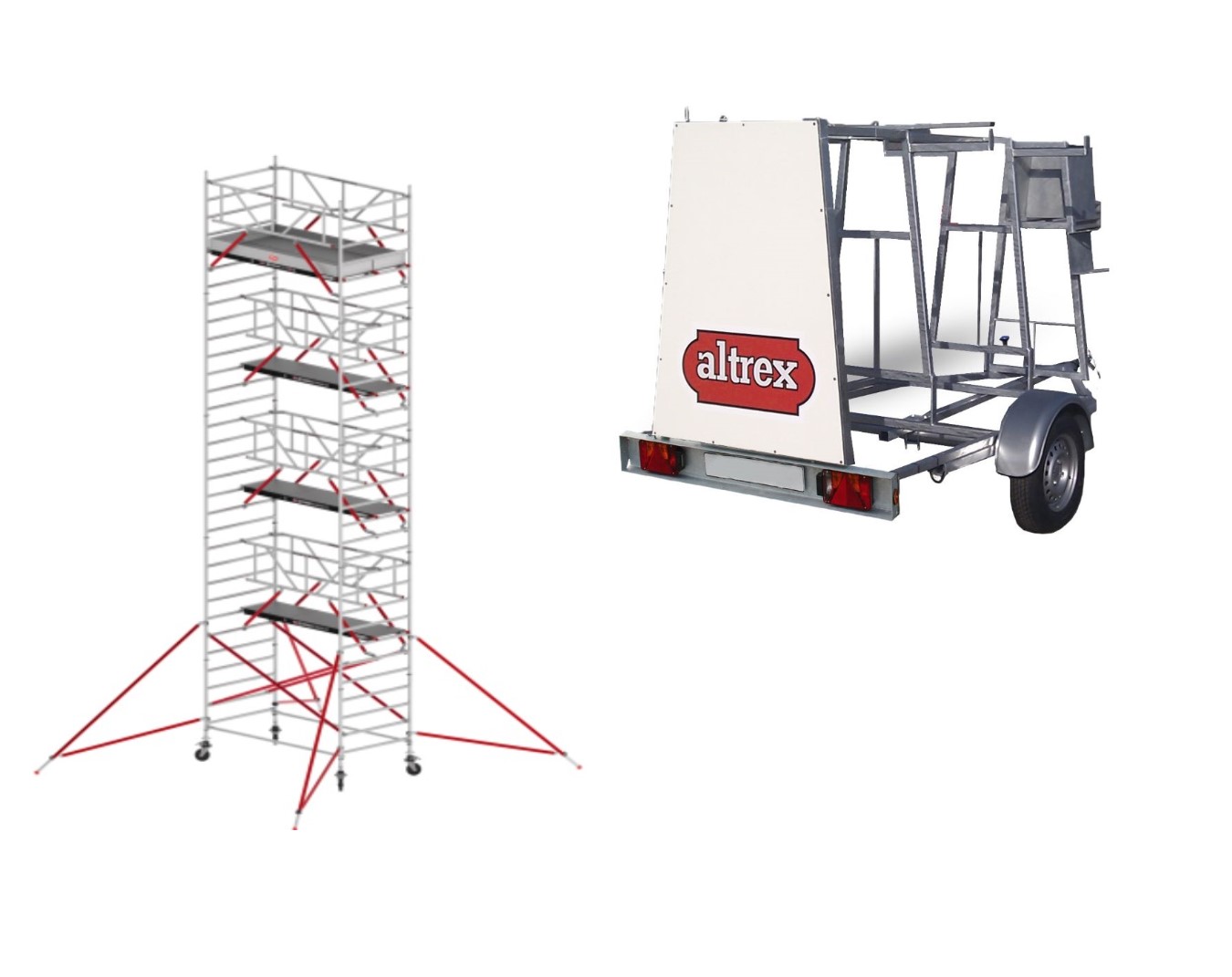

Altrex TX520056AANHANGERDELUXE RS TOWER 52-S 10.2m working height Fiber-Deck 2.45 Safe-Quick 2 Guardrail + Scaffold Trailer DeLuxe 185/245

Altrex RS TOWER 52-S 10,2m werkhoogte Fiber-Deck 2.45 Safe-Quick 2 Guardrail + Scaffold trailer DeLuxe 185/245

Special features

• The RS TOWER 52 is the rolling scaffold you can build on, both indoors and outdoors. The system is expandable with all components from the RS TOWER 5 series. Moreover, you can connect the scaffold to other applications, such as a walkway or fallout console. This makes your rolling scaffold not only strong and safe, but above all very flexible.
• You create your own customization with the RS TOWER 52. And that up to 10.2 meters outside and 14.2 meters height inside. With wide frames of 1.35 meters and a load of up to 250 kg per platform, there is room for two people and the necessary tools. The platform is available in lengths: 1.85, 2.45 or 3.05 meters. All-round welded anti-slip rungs and fixed locking pins also make the frame rock-solid and 100% reliable. With the Safe-Quick® version, you always have all-round protection and are always safe.
• Wide rolling scaffolds have a 1.35-meter frame. That means two platforms can be side by side. This gives you a larger work area.
• The rolling scaffold system can be expanded with components from the RS TOWER 5 series and combined with other applications, such as a walkway and fallout console.
• With the innovation Safe-Quick® GuardRail, you place a permanent handrail even before entering the platform. So you are protected all around at every level. Moreover, Safe-Quick® complies with the new construction method that is mandatory from 1-1-2018.
• Pinched claw-rail tube connections make the RS TOWER 52 rolling scaffold extremely strong. The connections are not welded and can take a beating.
• The rolling scaffold system is available with wooden or lightweight platforms. Fiber-Deck® platforms are 30% lighter and make erecting and dismantling the rolling scaffold fast and easy.
• The innovative platform hook lets you erect and dismantle the rolling scaffold even faster. The wind-up protection is integrated into the unique design.
• With the RS TOWER 5 rolling scaffold, it is possible to link several scaffolds together. In this way you create a large working surface without any difference in height between platforms. This is practical and, above all, very safe.
• The locking pins are attached directly to the frame. That way they are always in the right place and you always have them handy.
• Your rolling scaffold stands firmly in place with the double-braked wheels. Easy to unlock by hand and can be spun up to 25 cm.

Technical data

• Maximum working height 10.2 m
• Construction method Safe-Quick® + Braces
• Maximum platform height (outside) 8.2 m
• Platform height 8.2 m
• Platform length 2.45 m
• Platform Type Fiber-Deck
• Product height (operating position) 9.44 m
• Scaffold width 1.35 m
• Scaffold length 2.45 m
• Type of scaffolding Rolling scaffold
• Floor area (against facade) 7.03 x 3.26 m x m
• Floor area (detached) 4.81 x 5.22 m x m

Standard included

• Mounting frame wide 135-28-7 RS5 8 pieces
• Mounting frame wide 135-28-4 RS5 2 pcs.
• Wheel stand with wheel Ø 200 mm RS5 4 pcs.
• Fiber-Deck platform 245 with hatch RS5 4 pcs.
• Fiber-Deck platform 245 without hatch RS5 1 piece
• Safe-Quick ®2 Guardrail 2.45 m RS 8 pcs.
• Diagonal brace red coated 245-28-16 RS 4 pieces
• Horizontal strut 245-6 RS 2 pcs.
• Triangle stabilizer Easy-Lock® 4.2m PH red coated RS5 4 pcs.
• Edge board set alu 135-245 RS5 1 piece
• Scaffold trailer DeLuxe 185/245

Image may differ
