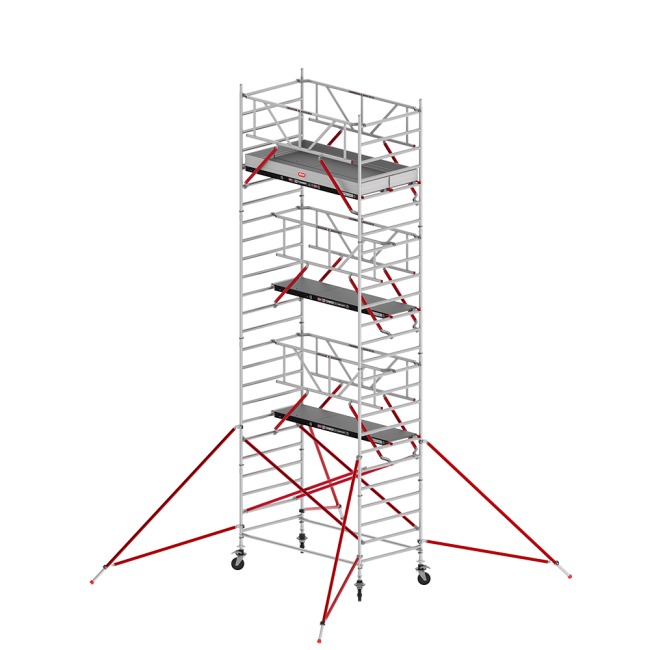

Altrex TX520066 RS TOWER 52-S Rolling scaffold 8.2m Fiber platform length 305

Altrex TX520066 RS TOWER 52-S Rolling scaffold 8.2m Fiber platform length 305

Special features

• RS TOWER 52 - Wide mobile scaffold tower
• The system with unprecedented possibilities
• The RS TOWER 52 is the rolling scaffold you can build on, both inside and outside
• The system can be expanded with all components from the RS TOWER 5 series
• Moreover, you can link the scaffold to other applications, such as a walkway or fall-back console.
• This makes your rolling scaffold not only strong and safe, but also very flexible.
• You create your own customization with the RS TOWER 52
• Up to 10.2 meters outside and 14.2 meters inside
• With wide frames of 1.35 meters and a load of up to 250 kg per platform, there is room for two persons and the necessary tools.
• The platform is available in lengths: 1.85, 2.45 or 3.05 meters
• Welded anti-slip rungs and fixed locking pins make the frame additionally very strong and 100% reliable
• With the Safe-Quick® version, you always have all-round protection and are always safe.

Technical data

• Maximum load: 750 kg
• Maximum standing height: 6.2 m
• Maximum working height: 8.2 m
• Product height in use position: 7.44 cm
• Free-standing floor area: 7.57 x 3.26 m
• With stabilizer: Yes
• Step/rung distance: 28
• Assembly method: SafeQuick® + Braces
• Minimum number of persons to assemble: 2
• Maximum working height indoors: 8.2 m
• Maximum working height outdoor (m): 8.2 m
• Scaffold length: 3.05 m
• Scaffold width: 1.35 m
• Platform length: 3.05 m
• Maximum number of persons on platform: 2
• Platform composition: double
• Platform type: Fiber-Deck
• Maximum platform height indoor: 6.2 m
• Maximum platform height outdoor: 6.2 m
• Frame width: 1.35 m
• Maximum wind load: 6 bft
• Access class: XXXD

Scope of delivery

• 6x superstructure frame 135-28-7 RS5 (301607)
• 2x Construction frame 135-28-4 RS5 wide (301604)
• 4x Wheel stand with wheel Ø 200 mm RS5 (511230)
• 3x Fiber-Deck® platform 305 with hatch RS5 (305410)
• 1x Fiber-Deck® platform 305 without hatch RS5 (305420)
• 6x Safe-Quick®2 Guardrail 3.05 m RS (360267)
• 4x Diagonal brace red coated 305-28-22 RS (303742)
• 2x Horizontal brace 305-8 RS (303708)
• 4x Triangular stabilizer Easy-Lock® red coated RS5 (513010)
• 1x Edge bracket set alu 135-305 RS5 (305806)
