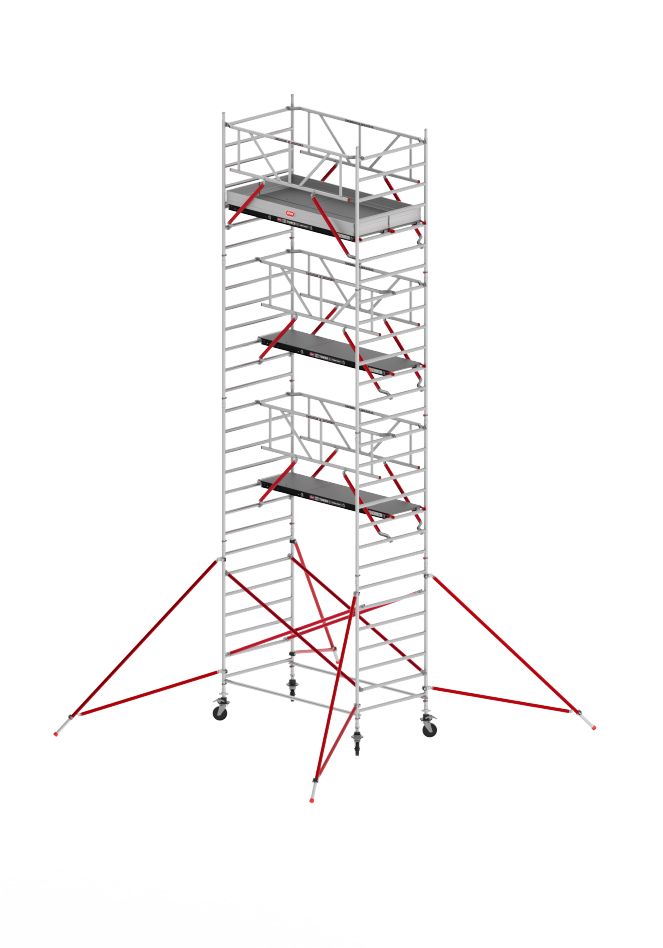

Altrex TX525015 RS TOWER 52-S Rolling scaffold 9.2m Wood platform length 245

Altrex TX525015 RS TOWER 52-S Rolling scaffold 9.2m Wood platform length 245

Special features

• RS TOWER 52 - Wide mobile scaffold tower
• The system with unprecedented possibilities
• The RS TOWER 52 is the rolling scaffold you can build on, both indoors and outdoors
• The system can be expanded with all components from the RS TOWER 5 series
• Moreover, you can link the scaffold to other applications, such as a walkway or fall-back console.
• This makes your rolling scaffold not only strong and safe, but also very flexible.
• You create your own customization with the RS TOWER 52
• Up to 10.2 meters outside and 14.2 meters inside
• With wide frames of 1.35 meters and a load of up to 250 kg per platform, there is room for two persons and the necessary tools.
• The platform is available in lengths: 1.85, 2.45 or 3.05 meters
• Welded anti-slip rungs and fixed locking pins make the frame additionally very strong and 100% reliable
• With the Safe-Quick® version, you always have all-round protection and are always safe.

Technical data

• Maximum load: 750 kg
• Maximum standing height: 7.2 m
• Maximum working height: 9.2 m
• Product height in use position: 8.44 cm
• Free-standing floor area: 7.03 x 3.26 m
• With stabilizer: Yes
• Step/rung distance: 28
• Assembly method: SafeQuick® + Braces
• Minimum number of persons assembled: 2
• Maximum working height indoors: 9.2 m
• Maximum working height outdoor (m): 9.2 m
• Scaffold length: 2.45 m
• Scaffold width: 1.35 m
• Platform length: 2.45 m
• Maximum number of persons on platform: 2
• Platform Assembly: Double
• Platform type: Wood
• Maximum platform height indoor: 7.2 m
• Maximum platform height outdoor: 7.2 m
• Frame width: 1.35 m
• Maximum wind load: 6 bft
• Access class: XXXD

Scope of delivery

• 8x Construction frame wide 135-28-7 RS5 (301607)
• 4x Wheel post with wheel Ø 200 mm RS5 (511230)
• 3x Wooden platform 245 with trapdoor RS5 (304510)
• 1x Wooden platform 245 without trapdoor RS5 (304520)
• 6x Safe-Quick®2 Guardrail 2.45 m RS (360266)
• 4x Diagonal brace red coated 245-28-16 RS (303727)
• 4x Horizontal brace 245-6 RS (303706)
• 4x Triangular stabilizer Easy-Lock® red coated RS5 (513010)
• 1x Edge bracket set alu 135-245 RS5 (305805)
