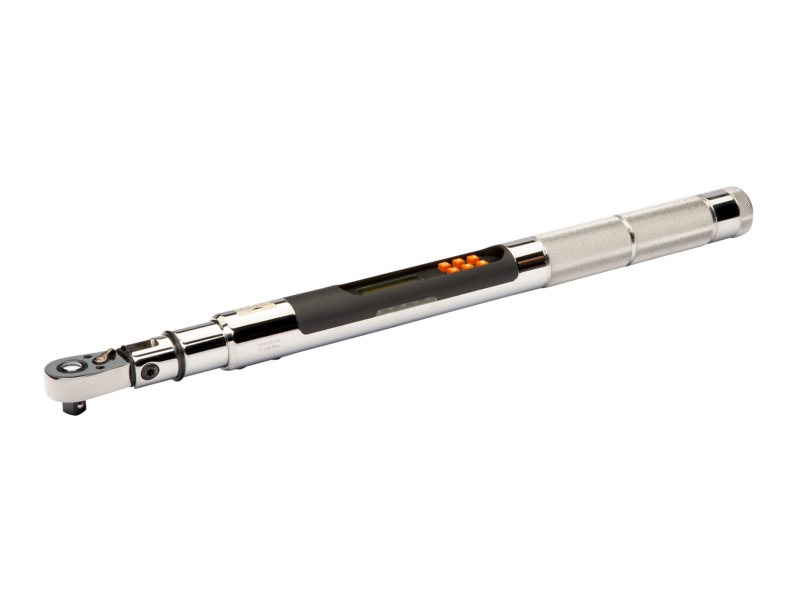

Bahco TAW1430 Electronic torque and angle wrench with fixed ratchet head

Bahco Electronic torque and angle wrench with fixed ratchet head TAW1430

Features

• Momentary units in Nm, kgcm, dNm, ft.lb, in.lb and angular units in degrees
• Torque range is from 7 to 800 Nm and from 5.1 to 590 ft.lb
• Can be used clockwise and anticlockwise at temperatures between 5 ºC and 42 ºC
• Memory capacity for 50 measured values and for up to 10 preset values
• Modes: Moment, Angle, Moment first then angle and Preset value
• Teller
• Data and setpoints are retained during battery replacement
• Programmable time for automatic shutdown
• Programmable recalibration warning
• More advanced configurations and settings available in the manual
• Accurate to ±2% clockwise and ±3% counterclockwise between 20n 100% of maximum torque
• Visual (dual LED backlit LCD display), audio and vibration signal
• Fixed ratchet heads with 40 teeth from 3/8" to ¾" square sockets
• Adjustment ring made of ABS and full metal housing for more strength and durability
• Metal handle with end cap with reverse thread for AA alkaline batteries compartment (included)
• Supplied in a robust blow moulded case
• Supplied with manufacturer''s declaration of conformity, traceability to international standards and CE marking
• 2014/30/EC, ISO 6789
• Made in the USA

Specifications

• Square: 1/4 in
• Square: 1/4 in
• Doelbereik: 0-360º
• Coupling range: 1.11-22.13 lb-ft
• Coupling range: 13.3-265.5 lb-in
• Torque range: 1.5-30 Nm
• Overall length: 358 mm
• Weight: 820 g
• Overall length: 358 mm
• Head, Width: 20 mm
