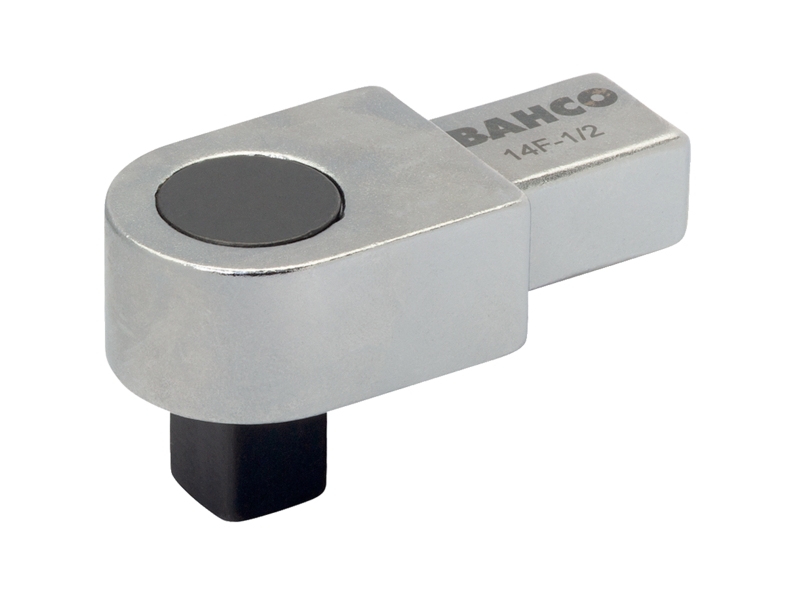

Bahco 14F-1/2 Fixed square head with rectangular connector

Bahco Fixed square head with rectangular connector 14F-1/2

Features

• Fixed square sockets for better accessibility in width and height compared to ratchet sockets
• The insert is secured to the torque wrench with a spring-loaded retractable pin
• The range extends from 9 x 12 to 27 x 36 sockets, from 1/4 to 1 inch square sockets and from a maximum torque of 30 Nm to 2500 Nm
• Suitable for 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 and TAWM24 keys
• For sizes with * in the moment length, the moment setting must be calculated

Specifications

• Length: 18 mm
• Drive square: 1/2"
• Square: 1/2 in
• Weight: 210 g
• Weight: 0.210 kg
• Width square: 14 mm
• Overall length: 65 mm
• Width: 30 mm
• Height: 18 mm
• Working length: 25 mm
• Kop, Width: 30 mm
