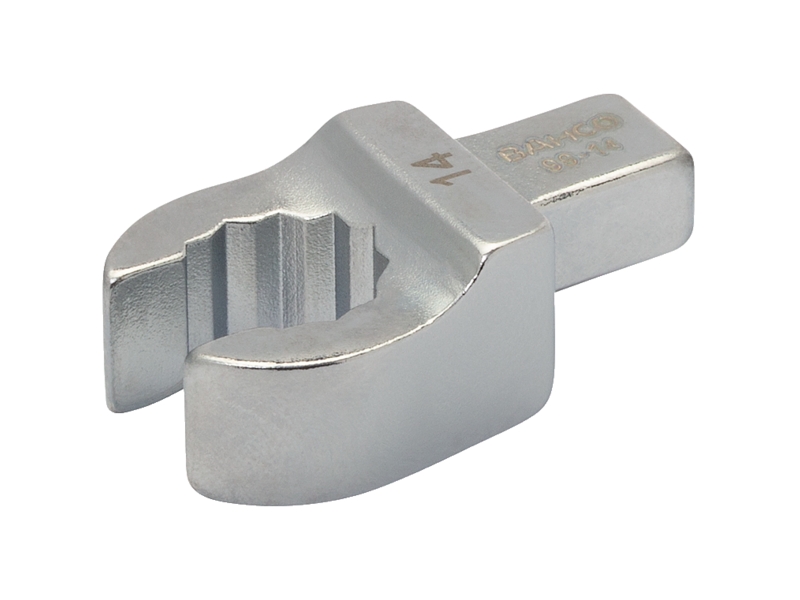

Bahco 99-14 Insert with Open-end and rectangular connector

Bahco Insert with Open-end and rectangular connector 99-14

Features

• The insert is secured to the torque wrench with a spring-loaded retractable pin
• The range of 9 x 12 holders varies from 10 to 24 mm apertures, from 3/8 to ¾ inch apertures and from 9 to 96 Nm
• For sizes with * in the moment length, the moment setting must be calculated
• Suitable for 7465, 74W9, 74P9, 74P14, IZO-D, TAW9 and TAWM9 keys

Specifications

• Diameter: 14 mm
• Length: 12 mm
• Max. Coupling force: 37 Nm
• Weight: 62 g
• Weight: 0.062 kg
• Square width: 9 mm
• Overall length: 45 mm
• Working length: 16 mm
• Width: 25 mm
• Opening: 37 mm
• Length: 43 mm
• Head, Width: 27 mm
