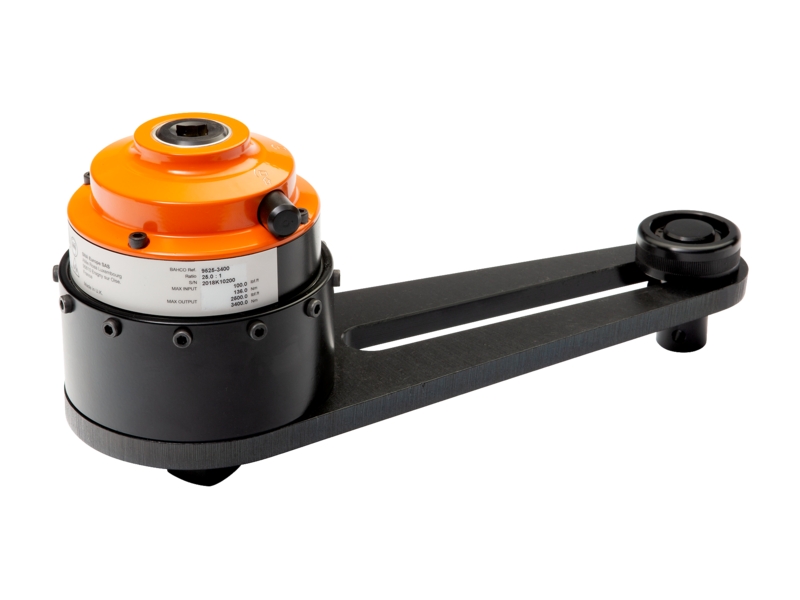

Bahco 9625-9500 Manual torque multiplier with reaction plate

Bahco Manual torque multiplier with reaction plate 9625-9500

Features

• Ratchet lock system available on all propagators except those with a 5:1 multiplier
• Maximum output torque is 9500 Nm
• Always use with torque wrench (clockwise and anti-clockwise) to avoid exceeding the maximum torque of the multiplier
• Accuracy ±4%
• A ratchet lock system reduces the forces generated during tightening, making possible what would otherwise be difficult, dangerous or even impossible
• Supplied with straight reaction plate with adjustable reaction point
• Supplied in portable fabric bag up to 3400 Nm and in sturdy carry case with wheels for larger sizes
• Made in the United Kingdom

Specifications

• Lengte: 351 mm
• Multiplication ratio: 25:1
• Square: 3/4" 1.1/2" in
• Square: 1.1/2 in
• Coupling ratio: 380-9500 Nm
• Weight: 25700 g
• Weight: 25,700 kg
• Head, Width: 184 mm
