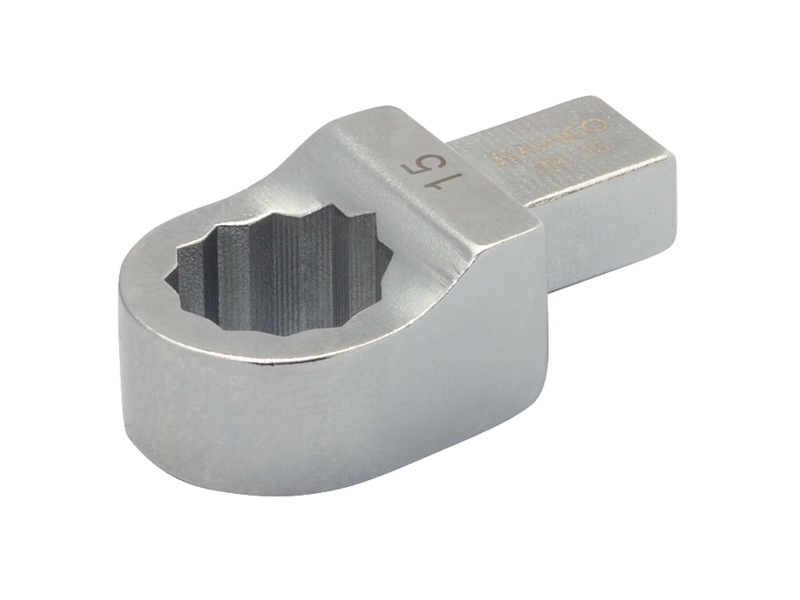

Bahco 278-36 Metric insert with ring end and rectangular connector

Bahco Metric insert with ring end and rectangular connector 278-36

Features

• The insert is secured to the torque wrench with a spring-loaded retractable pin
• The range varies from 9 x 12 to 27 x 36 holders, from 7 to 60 mm apertures and from 25 to 3000 Nm
• For sizes with * in the moment length, the moment setting must be calculated
• Suitable for 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 and TAWM24 keys

Specifications

• Diameter: 36 mm
• Length: 36 mm
• Max. Coupling force: 3000 Nm
• Weight: 1220 g
• Weight: 1,22 kg
• Width square: 27 mm
• Overall length: 125 mm
• Width: 70 mm
• Height: 28 mm
• Working length: 40 mm
• Length: 125 mm
• Head, Width: 75 mm
