Product description

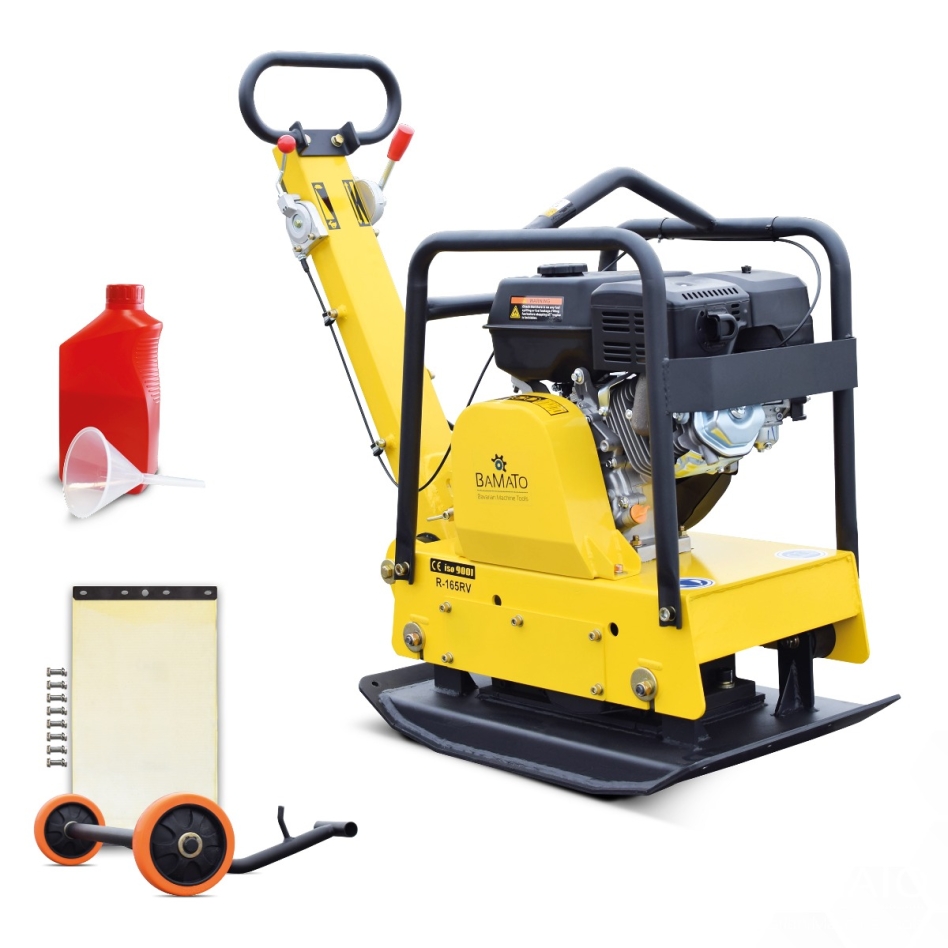

Bamato R-165RV Vibratory plate 750x450 mm 30.5 kN
Features
- The BAMATO Vibratory plate R-165RV is equipped with a powerful 4-stroke motor
- Solid steel construction protects the engine
- Easy operation by stepless forward and backward movement
- More controllable - more manoeuvrable - more energy saving compared to a vibratory plate that only runs forwards
- A wide variety of materials can be compacted with the R-165RV (e.g. sand, earth, gravel)
- Particularly suitable for foundation work, gardening and landscaping, road building and much more
- Vibration in composite stone paving with a rubber mat
- With the eye bolt, the vibratory plate can be lifted easily and conveniently in a ditch
Specifications
- Engine type: 1 cylinder 4 stroke OHV engine
- Displacement: 270 cm³
- Engine power: 6.0 kW
- Tank capacity: 6.0 litres
- Working speed: 3600 rpm
- Fuel type: unleaded petrol
- Max. Permissible motor inclination: 20 °
- Dimension plate: 700 x 450 mm
- Starting system: reversing the starter motor
- Centrifugal force: 30,5 kN
- Max. Power supply: 25 m / min
- Vibration shocks: 4000 vpm
- Excitation system: reversible (forward and reverse)
- Compaction depth: 500 mm
- Operating weight: 155 kg
- Length in mm: 1030
- Width in mm: 450
- Height in mm: 1040
- Sound power level in dB (A): 108
- Packing length in mm: 780
- Packaging width in mm: 440
- Height packaging in mm: 1100
- Dispatch weight in kg: 175
Includes
- 1 x Rubber mat
- 1 x mounting set
- 1 x Wheelset
- 1 x Motorola
- 1 x Funnel
