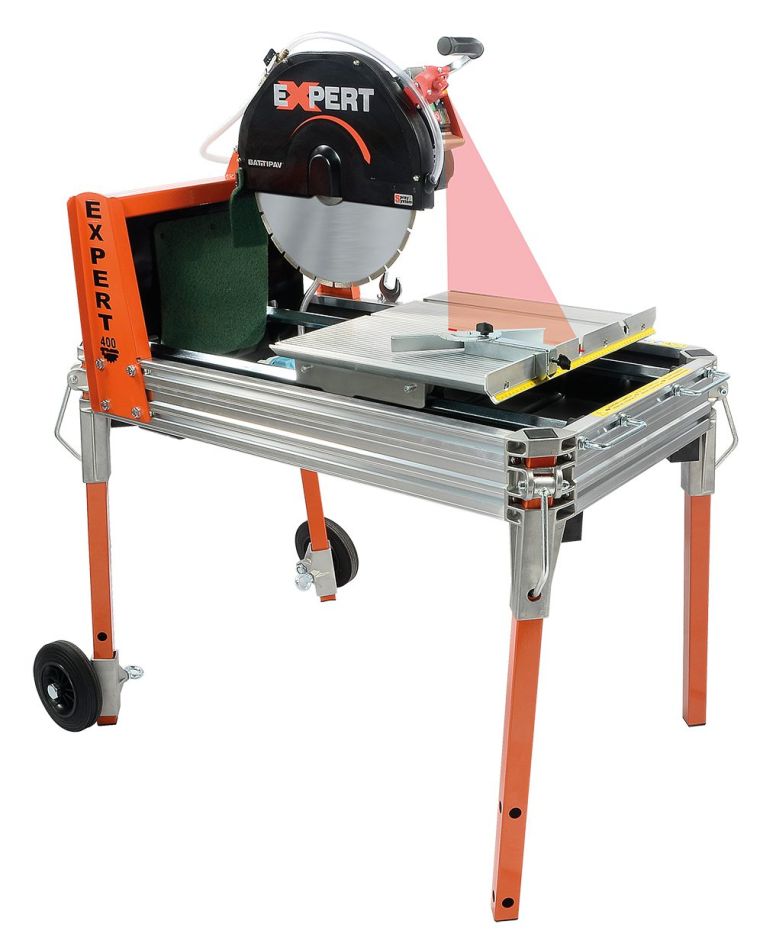

Battipav 13.102.04 Table saw machine Expert 400S
Description
- The EXPERT series is the ideal table saw machine for the construction industry
- Innovative design with high-tech solutions, very precise, compact, light and strong, it is suitable for cutting bricks, poroton blocks, marble blocks and all different kinds of materials for construction industry
- Material is cut by moving the carriage
- Suitable for diamond saw blades Ø 400 mm
Technical data
- Item number: 13.102.04
- Power: 3.8Hp / 2.8kW / 12A
- Shaft hole: 25.4 mm
- Speed: 2800 rpm.
- Protection: Thermal - 16 A
- Protection class: I
- Protection rating: IP 54
- Adjustable saw head: Yes
- Disc diameter: 400 mm
- Max. cutting length straight: 570 mm
- Max cutting depth in 2x: 155 mm
- Max cutting depth 90°: 135 mm
- Max. cutting depth 45°: n/a.
- Voltage: 230 V
- Power plug: 3P-16A
- Switch: on/off
- Scope(s): Construction
- Suitable for: (brick) stone, poroton blocks and marble blocks
- Includes: Wheels, water pump P2 and assembly tools
- Version: with laser
- Dimension(s): 800 x 1200 x 970 mm
- Weight: 78.5 Kg
Scope of delivery
- Exclusive: Saw blade
More Information
| EAN | 8713265065005 |
|---|---|
| Order Number | 13.102.04 |
| Manufacturer | Battipav |
| Warranty | 1 year |
| Voltage (V) | 230 V |
