Battipav 13.102.06 Table saw machine Expert 600S

Battipav 13.102.06 Table saw machine Expert 600S

Description

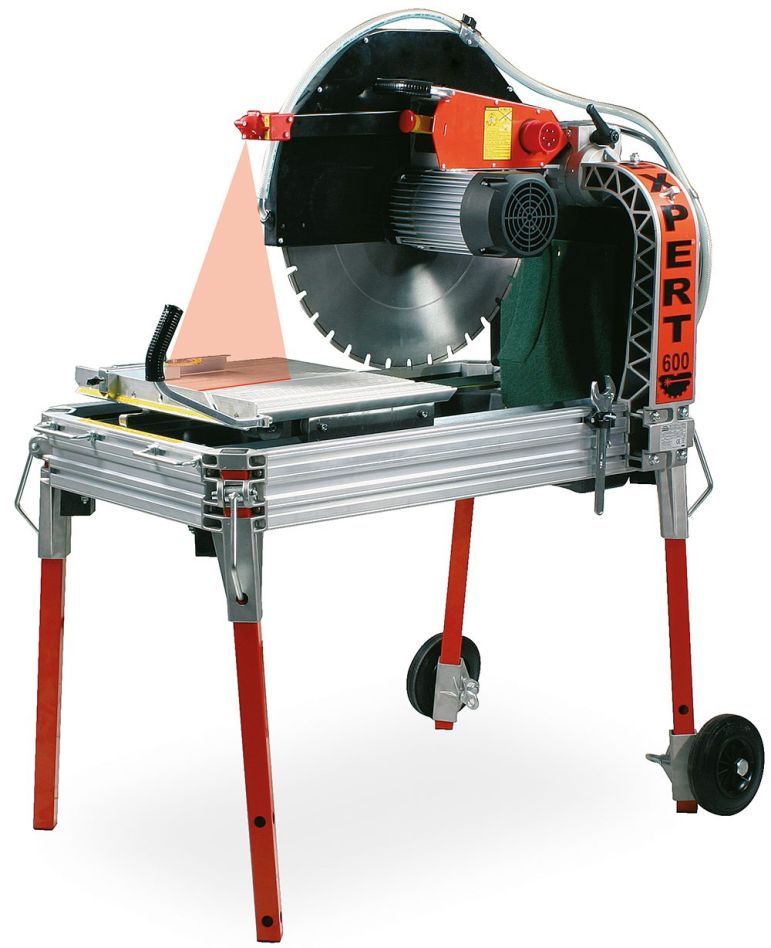

• The EXPERT series is the ideal table saw machine for the construction industry
• Innovative design with high-tech solutions, very precise, compact, light and strong, it is suitable for cutting bricks, poroton blocks, marble blocks and all different kinds of materials for construction industry
• Material is cut by moving the carriage
• Suitable for diamond saw blades Ø 600 mm

Technical data

• Power: 5.5Hp / 4kW / 8A
• Shaft hole: 25.4 mm
• Speed: 1400 / 1700 rpm.
• Protection: Thermal - 10 - 16 A
• Protection class: I
• Protection rating: IP 54
• Adjustable saw head: Yes
• Disc diameter: 600 mm
• Max. cutting length straight: 750 mm
• Max cutting depth in 2x: 285 mm
• Max cutting depth 90°: 220 mm
• Max. cutting depth 45°: n/a.
• Voltage: 400 V
• Power plug: 5P-16A
• Switch: on/off
• Scope(s): Construction
• Suitable for: (brick) stone, poroton blocks and marble blocks
• Includes: Wheels, water pump P3 and assembly tools
• Version: with laser
• Dimension(s): 800 x 1200 x 1030 mm
• Weight: 86.5 Kg

Scope of delivery

• Exclusive: Saw blade
