Belmash BEL-2000UNI Universal woodworking machine sawing and planing!

Belmash BEL-2000UNI Universal woodworking machine sawing and planing!

Features

• These portable and compact planing and sawing machines 230V are unique in the market and one of a kind
• They work against all other machines of its kind with very powerful induction motors
• An induction motor has 30% more power than a carbon brush motor and is over 40% quieter
• It is also maintenance-free, as there are no carbon brushes to replace
• Furthermore, they are driven in an industrial way by means of poly-belts instead of classical V-belts
• The construction of the frame is also very unique and robust as it is made of sheet steel of 3.5mm thickness
• Together this guarantees excellent performance, but also optimal resistance for your machine
• Very fast change from planing to sawing function by moving the belt
• The unique thing about these models is that they work with a separate knife block for each operation
• The independent drive provides the ideal speed for planing and sawing
• Also turn to safety so the planer and saw are separate
• Thanks to the micro-lifting system of the planing tables, the planing depth can be set very precisely and smoothly, but the tables can also be closed completely in a short space of time
• By completely closing the tables, the saw table has a large working area
• This Universal 2.0 has a very clear and accurate scale for each setting
• The guide can be locked both in front of and behind the work table, ensuring stable and precise work
• It can also be set to angle or miter with very clear readout, and this for both the planer and saw function
• For the saw there is also a miter guide with clear degree indication
• The machine is equipped for working with rabbit cutters up to 10mm thick
• The high-quality construction of these compact machines, such as thick sheet steel, direct drive, induction motors, high-quality ball bearings, large and robust adjusting and rotating levers give these machines an enormous ease of use with excellent performance and an optimal service life
• 230V, 2.8 HP powerful induction motor
• 200mm planing width
• 97mm cutting height
• Portable and compact planer and saw
• Solid sheet steel tables 3.5mm thick
• Driven by Poly-V belt
• Very fast change from planing to sawing function by moving the belt
• Guide can be clamped in front or behind for stable and precise work
• Independent drive for the ideal speed for each operation
• Can work with grooved cutters up to 10mm thick

Technical data

• Planing width 200mm
• Planing spindle speed 6000/2850 RPM Motor 230V, 50Hz, 2000W
• Saw blade 250mm
• Machine weight 36 Kg
• Cutting depth 97mm
• Dimensions 732x491x358mm
• Planing cutter 0-3mm
• Range of sawing or planing tilts 0-45
• Dimensions work table 700x474mm
• Packaging dimensions 750x509x251mm

Includes

• Clamping device
• Saw guide

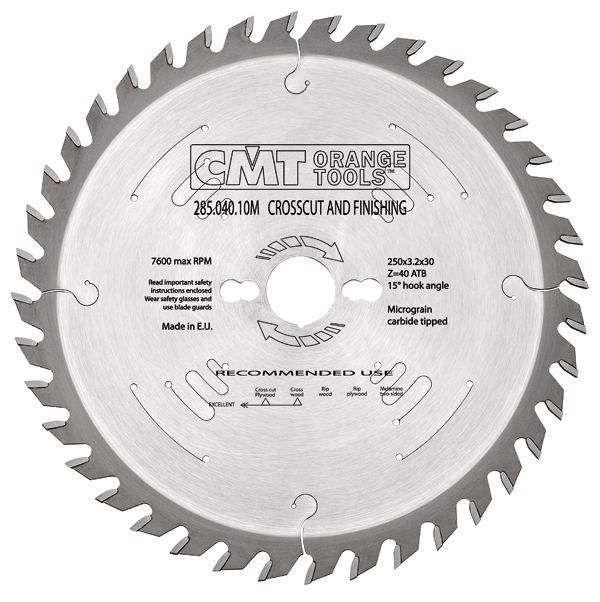

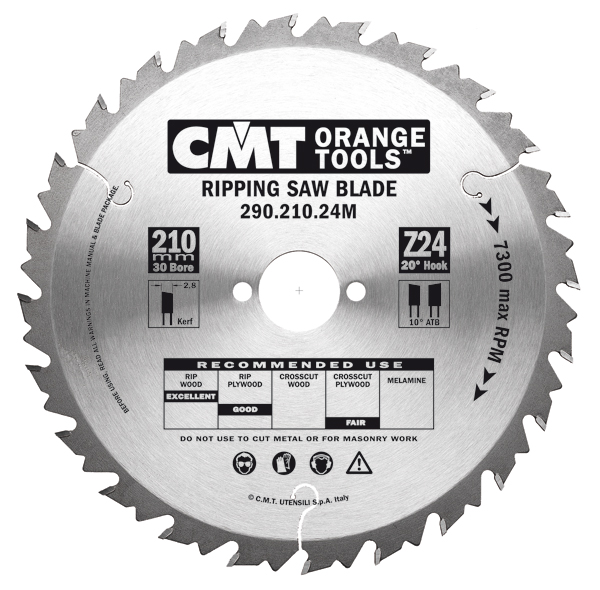

• Saw blade with splitting wedge
• Ruler
• Cover plate
• Handle (thumbscrew)
• Mitre guide
• Insert

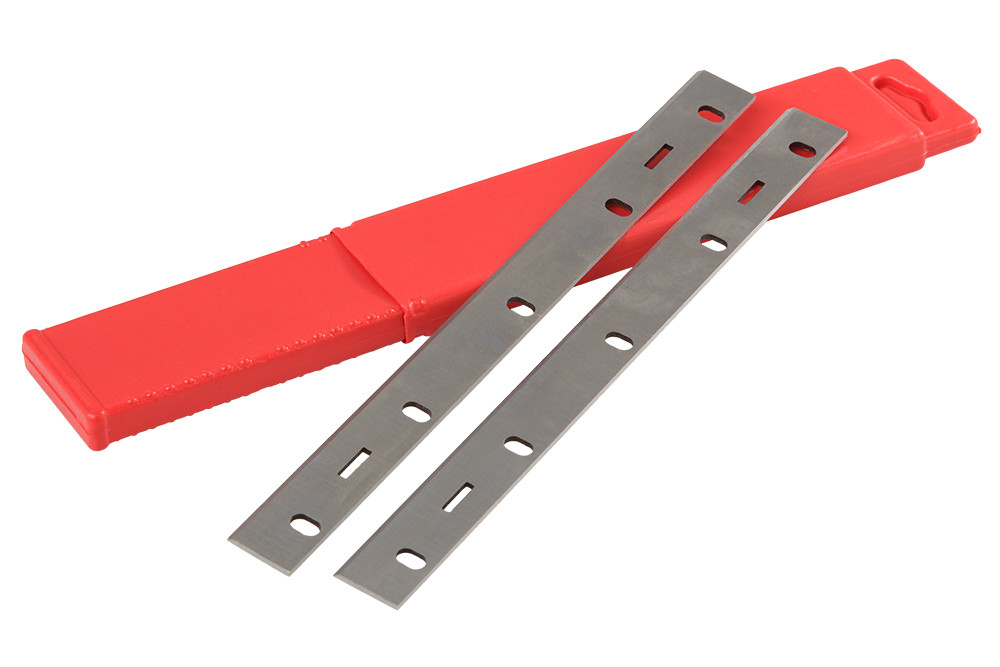

• Planing bits in knife block
• Bracket
• Operating manual

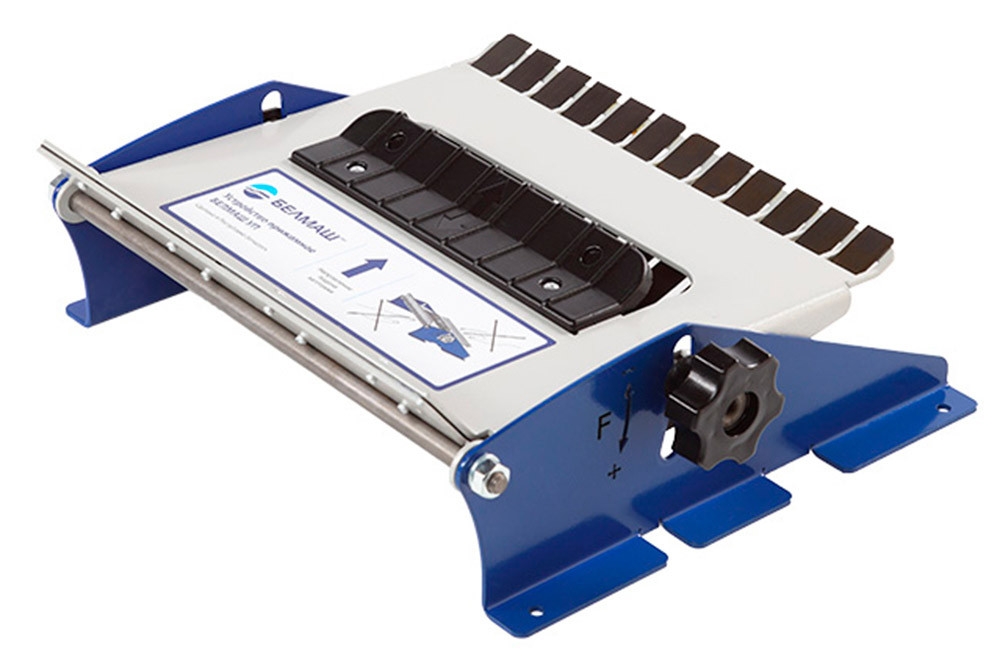

Temporarily with thickness guard!
