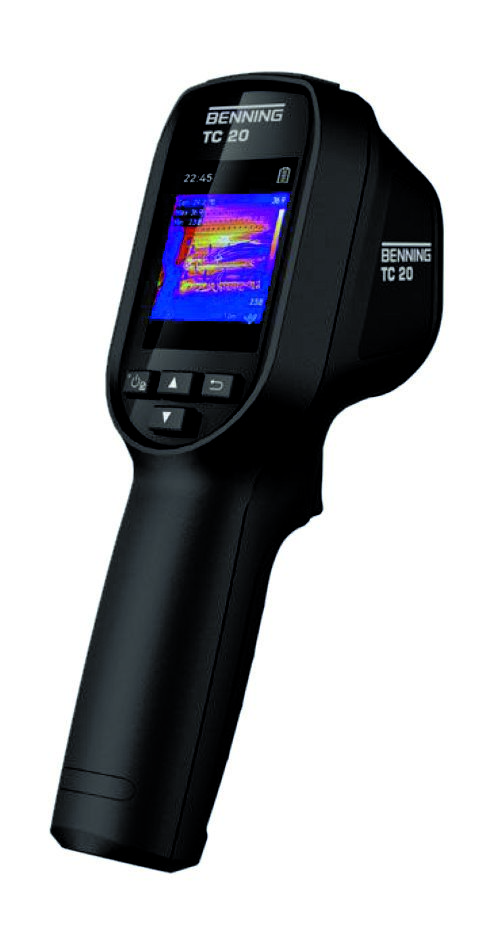

Benning 050520 Thermal imaging camera TC 20

Benning 050520 Thermal imaging camera TC 20

Thermal imaging camera with two cameras.

Special features.

• Registration of thermal images, optical and merged images
• Temperature measurement range: -20 °C to +550 °C
• 3 image modes (thermal, optical, fusion) and 7 color palettes
• Wide-angle lens (50° x 50°) for capturing large areas
• High temperature alarm functionPractically efficient and robust:
• Automatic measurement of hotspots (Max), coldspots (Min) and centerspot (image center temperature)
• Merged recordings of thermal and optical images for greater detail and contour sharpness
• Laser beam for fast target acquisition
• Powerful Li-ion battery (3,350 mAh) with maximum operating time of 8 hours
• Compact pistol shape and intuitive operation

Technical data

• Measuring range: -20 - 550 °C
• Storage function: Flash memory / file format: 4 GB
• Operating temperature: -10 to 50 °C
• Display: 2.4" (6.1 cm) color LCD screen (240 x 320 dots)
• Pixels: 240x320
• Protection class: IP54
• Dimensions: 196 x 78 x 59 mm
• Weight in kg: 0.29 kg

Scope of delivery

• Strap
• USB type C connection cable
• Quick user guide
