Description

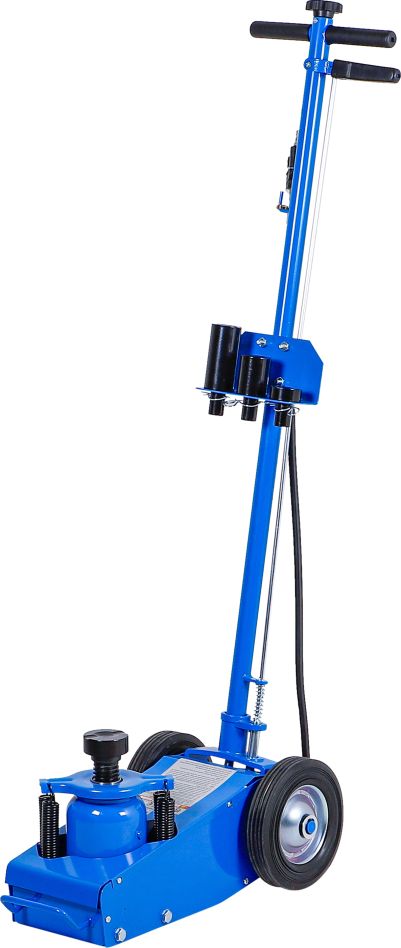

BGS 2888 Air pot jack hydraulic mobile 22 t
Special features
- Piston stroke 100 mm
- 4 attachments for different lifting/underride heights:
- Ø 48 mm, length 20 - 60 - 100 mm
- Ø 68 mm, length 25 mm
- 80 mm lifting spindle, adjustable
- Compressed air inlet 6.3 mm (1/4") NPT
- Wheel diameter 72 mm
- Compressed air hose outer Ø 10 mm, length 1.2 m
- Working pressure 6.9 - 8.3 bar (120 - 200 PSI)
Technical data
- Operating pressure: 6.9 - 8.3 bar
- Gross weight: 35900 g
- Lifting height: 500 mm
- Max. load capacity: 22 t
- Clear height: 230 mm
More Information
| EAN | 4026947028880 |
|---|---|
| Order Number | 2888 |
| Manufacturer | BGS |
