BGS 74348 Pneumatic Angle Impact Wrench 12.5 mm (1/2") 650 Nm incl. power socket wrench set 10-piece in case

BGS 74348 Pneumatic Angle Impact Wrench 12.5 mm (1/2") 650 Nm incl. power socket wrench set 10-piece in case

Special features

• Compact set composition
• Powerful and robust air impact wrench with 9 different power socket wrenches
• For use with hex nuts or screw heads
• Can be used in many places where other impact wrenches cannot be used
• For machining screw connections on calipers or other hard-to-reach work areas
• Adjustable handle around its own axis for optimal handling
• Both handle and flexible head adjustable for optimal adaptation to the working environment
• Speed 3-stage adjustable
• Low vibration
• Easy to use
• Compact design with a length of only 86 mm
• One-hand operation for left- and right-handed users

• Hammer mechanism: jumbo hammer
• Vibration level (ahd): 10.07 m/s²
• Vibration level (K): 1.31 m/s².

Technical data

• Take-up profile: Outer square
• Take-up profile size, inch: 1/2 "
• Take-up profile size, metric: 12.5 mm
• Operating pressure: 6.2 bar
• Gross weight: 3090 g
• Torque max: 610 Nm
• Torque min: 450 Nm
• Direction of rotation: Right/Left
• Max speed: 8000 rpm
• Compressed air connection: 1/4 "
• Recommended internal hose diameter: 10 mm
• Loosening torque max: 650 Nm
• Air consumption: 226 l/min
• Sound pressure level max: 87.62 dB(A)
• Sound power level max: 97.78 dB(A)

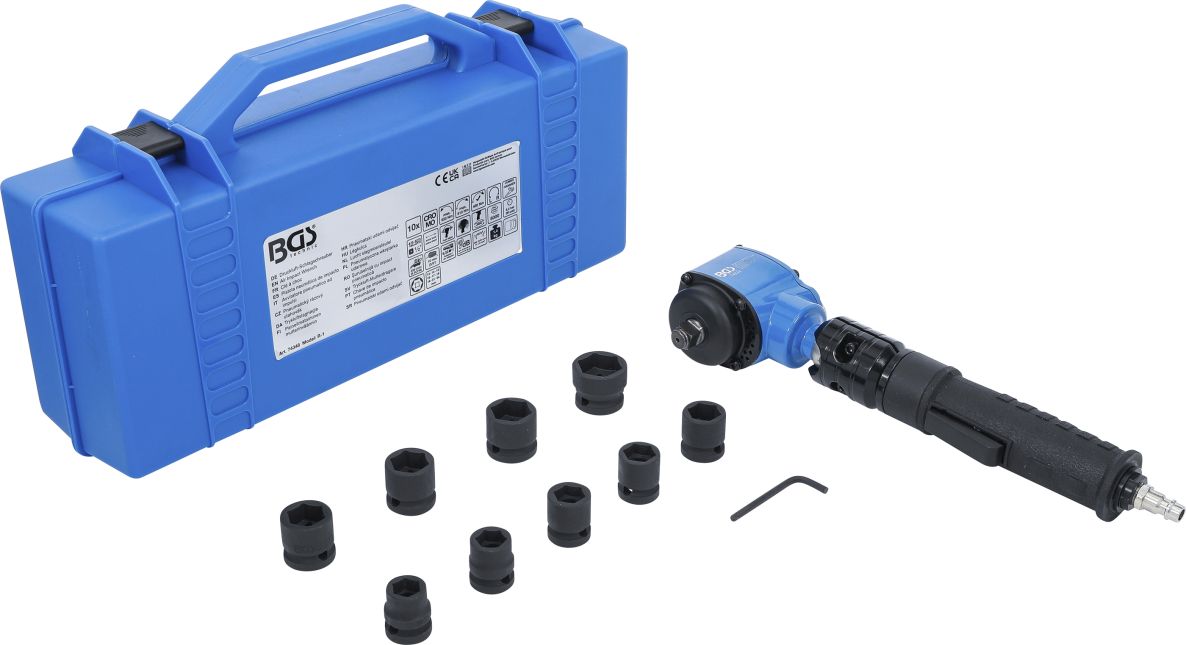

Scope of delivery

• 1 compressed air impact wrench | angled | with rotating and tilting head | 12.5 mm (1/2") | 650 Nm (BGS 74232)
• 1 power socket wrench set, hexagonal, extra flat | 12.5 mm (1/2") | 13 - 24 mm | 9-piece (BGS 9551)
