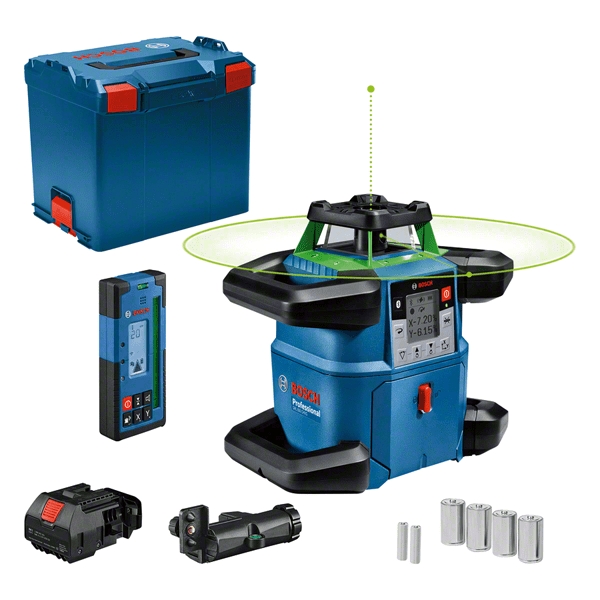

Bosch Professional 0601061704 GRL 300 HVG Rotation laser set 1x battery 9V 2x battery 1.2V and charger in L-BOXX

Bosch Blue 0601061704 GRL 300 HVG Rotation laser set 1x battery 9V 2x battery 1.2V and charger in L-BOXX

Special features

• Green laser line: up to four times better visibility than a red line

Technical data

• Product width: 180 mm
• Product height: 170 mm
• Mailing segment: Metal and Stone and Wood
• Dust and splash water protection: IP54
• Electrical power supply: 2 x 1.5 V LR20 (D)
• Self-leveling time, typ.: 15 s
• Leveling range: ± 5° (8%)
• Laser class: 3R
• Laser diode: 532 nm, < 5 mW
• Tripod thread: 5/8"
• Working range, approx.: 100 m
• Length x width x height: 190 x 180 x 170 mm
• Leveling accuracy: ± 3 mm at 30 m* (*plus usage-dependent deviation)
• Working range, value: 100 m
• Storage temperature: -20 - 70°C
• Working temperature: 0 - 40°C
• Laser line color: Green
• Working range with receiver, value: 300 m
• Working range with receiver: 300 m (diameter)
• Compatible laser receivers: LR 1G
• Rotation speed: 150, 300, 600 rpm
• Working range without receiver: 100 m (diameter)

Scope of delivery

• Laser receiver LR 1G Professional (0 601 069 700)
• Bracket (1 608 M00 70F)
• L-BOXX 238 (1 600 A01 2G2)
• 1x 9V 7HR9V VARTA rechargeable battery
• 2x 1.2V HR20 (D) VARTA rechargeable batteries
• 1x VARTA charger
