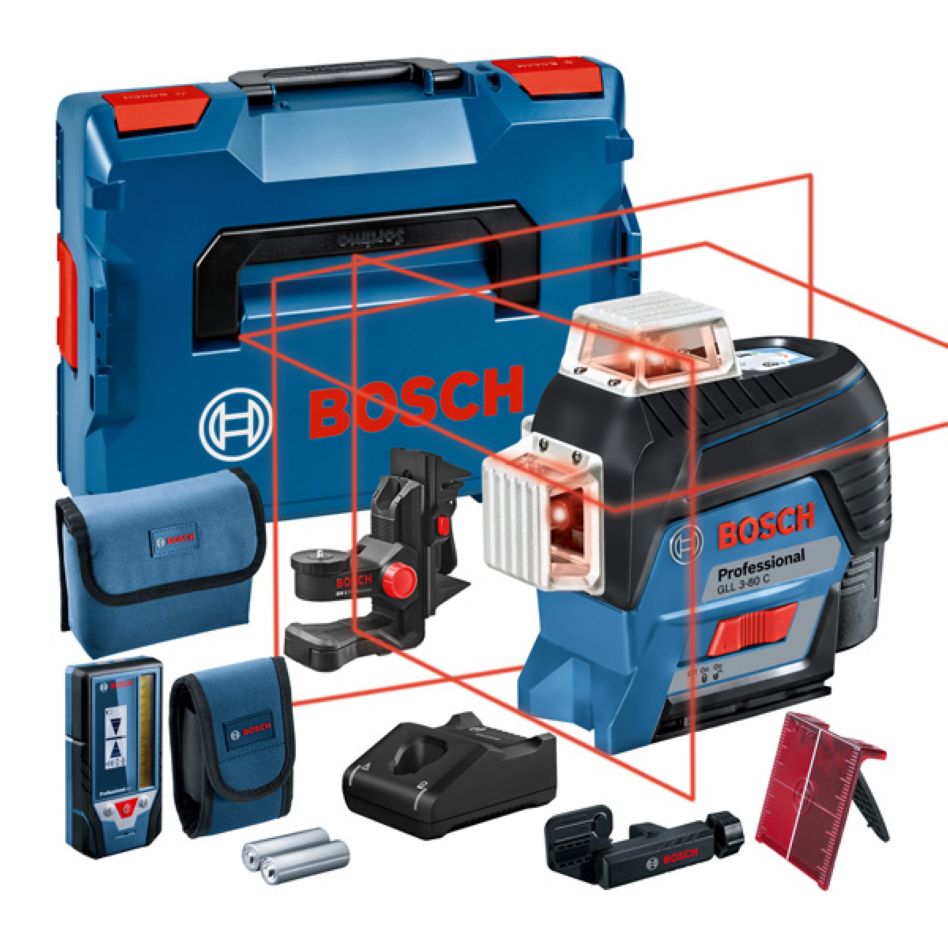

Bosch Professional 0601063R05 GLL 3-80 C Line laser set 1x 12V 2.0 Ah and quick charger GAL 12V-40 CV in L-BOXX

Bosch Blue 0601063R05 GLL 3-80 C Line laser set 1x 12V 2.0 Ah and quick charger GAL 12V-40 CV in L-BOXX

Special features

• Highly accurate CAL Guard monitoring and remote operation with Bluetooth®-connected smartphone app
• High visual clarity is provided by powerful diodes
• 3 x 360° lines for simultaneous horizontal and vertical levelling for highly efficient work

Technical data.

• Product width: 84 mm
• Product height: 148 mm
• Mailing segment: Metal and Stone and Wood
• Dust and splash water protection: IP54 *** (***except for the Li-Ion battery and AA1 battery adapter)
• Electrical power supply: 12 V Li-Ion battery|4 x 1.5 V LR6 (AA)
• Self-leveling time, typ.: 4 s
• Leveling range: ± 4°
• Laser class: 2
• Laser diode: Line: 630 - 650 nm, < 10mW
• Tripod thread: 1/4", 5/8"
• Working range, approx.: up to 30 m
• Length x width x height: 162 x 84 x 148 mm
• Leveling accuracy: ± 0.2 mm/mᵃ/**
• Working range, value: 30 m
• Storage temperature: -20 - 70°C
• Working temperature: -10 - 40°C
• Laser line color: red
• Operating time, max: 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
• Working range with receiver, value: 120 m
• Working range with receiver: up to 120 m
• Projection: 3 x 360° line
• Compatible laser receivers: LR 6 + 7

Scope of delivery

• L-BOXX 136 (1 600 A01 2G0)

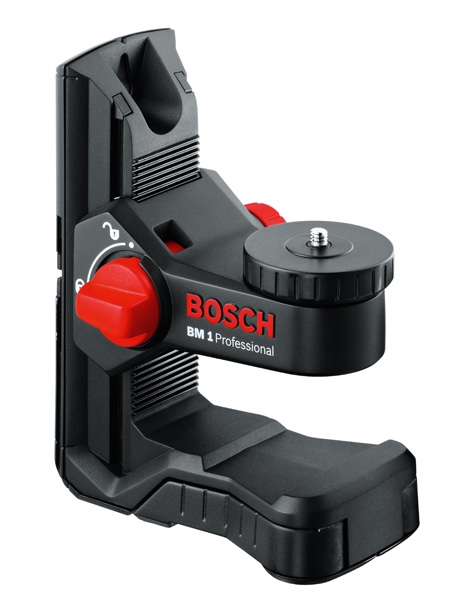

• Universal holder BM 1 Professional (0 601 015 A01)
• Laser target plate
• Case
• 1x battery GBA 12V 2.0Ah (1 600 Z00 02X)
• Holder for laser receiver LR 6/7 (1 608 M00 C1L)
• Laser receiver LR 7 Professional (0 601 069 J00)
• Quick charger GAL 12V-40 Professional (1 600 A01 9R3)
