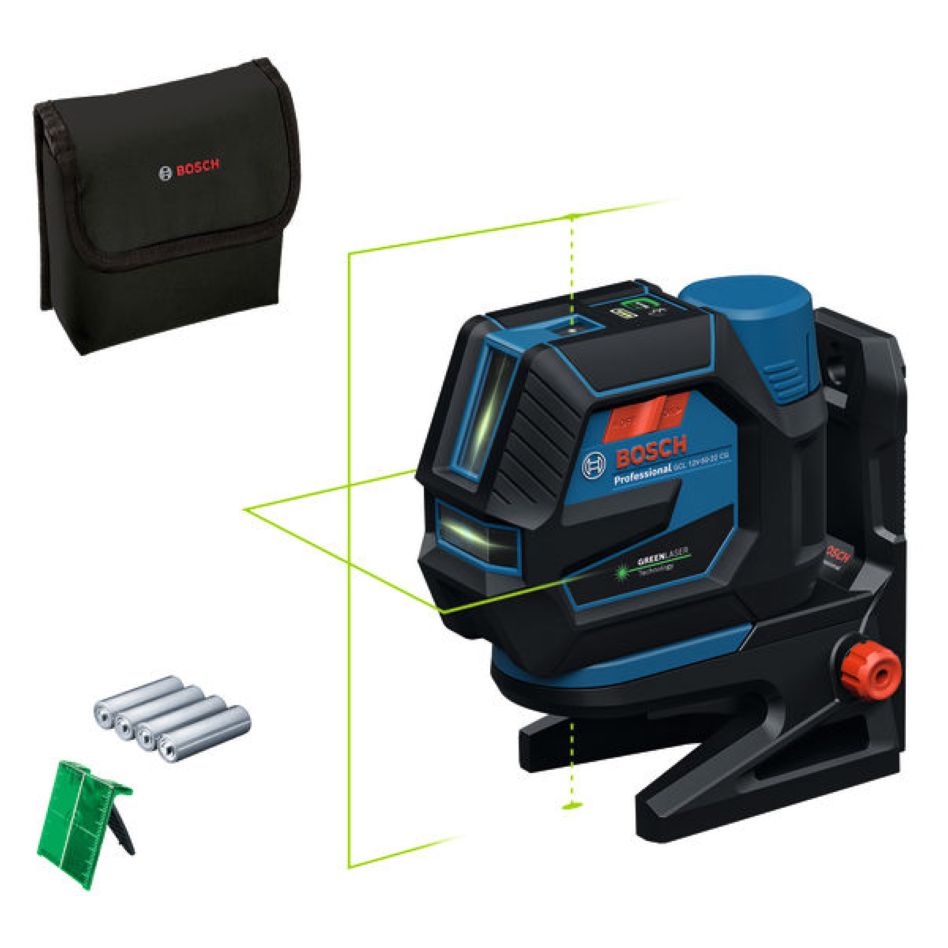

Bosch Professional 0601066S00 GCL 12V-50-22 CG set Line and point laser excl. batteries and charger in box

Bosch Blue 0601066S00 GCL 12V-50-22 CG set Line and point laser excl. batteries and charger in box

Special features

• Enjoy peace of mind with IP65 dust and water protection and sturdy rubber housing
• Save time and increase accuracy with the Levelling Remote app for hands-free line control
• No downtime thanks to Dual Power Source, which allows switching between a 12V Li-Ion battery and AA alkaline batteries

Technical data.

• Product width: 68 mm
• Product height: 116 mm
• Mailing segment: Metal and Stone and Wood
• Dust and splash water protection: IP65 (except the battery and battery adapter)
• Electrical power supply: 12 V Li-Ion battery|4 x 1.5 V LR6 (AA)
• Self-leveling time, typ.: 4 s
• Leveling range: ± 4°
• Laser class: 2
• Laser diode: Line: 500 - 540 nm, < 10 mW|Point: 500 - 540 nm, < 1 mW
• Tripod thread: 1/4"
• Working range, approx.: up to 25 m
• Length x width x height: 152 x 68 x 116 mm
• Leveling accuracy: ± 0.3 mm/m* (*plus usage-dependent deviation)
• Working range, value: 25 m
• Storage temperature: -20 - 70°C
• Working temperature: -10 - 45°C
• Color of laser line: Green
• Color of lead tips: Green
• Operating time, max: 8 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation
• Working range with receiver, value: 50 m
• Working range laser points, max: 10 m (top) | 10 m (bottom)
• Working range with receiver: up to 50 m
• Projection: 2 lines / 2 points
• Lead point accuracy: ± 0.7 mm/m* (*plus usage-dependent deviation)
• Compatible laser receivers: LR 7

Scope of delivery

• Rotary holder RM 20 Professional (1 600 A03 1YN)
• 4x 1.5 V LR6 battery (AA)

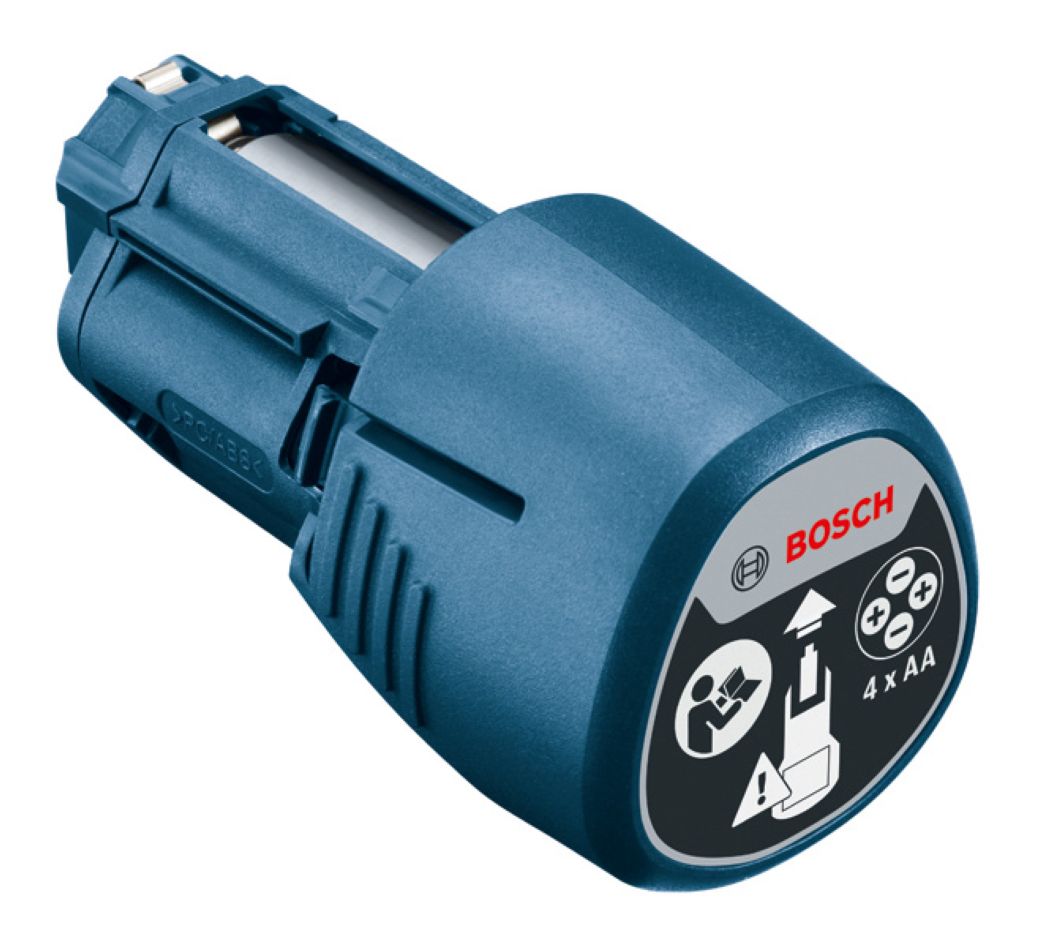

• AA1 alkaline battery adapter (1 608 M00 C1B)
• Laser target plate
• Case
