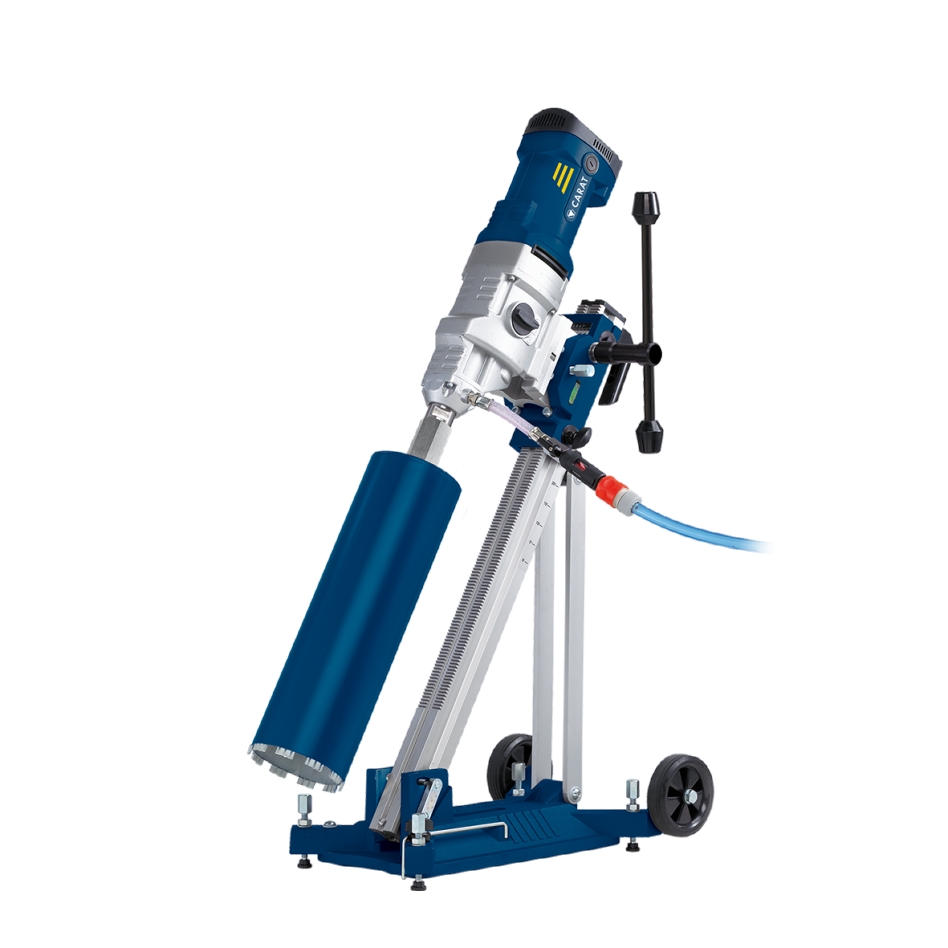

Carat ASB2512L00 AS-2512 Drilling System (Drill ENGINE A-2510L AND STATION S-2300)

Carat AS-2512 Boorsysteem (BOORMOTOR A-2510L EN STATIEF S-2300)

Now a total of 2 years warranty on Carat Machines (*) (*) on top of the factory warranty of Carat (1 year) you will receive from us 1 year TOOLPLUS warranty extra.

ToolNation TOOLPLUS Warranty: 1 year additional toolplus warranty on power tools.

Features AS-2512

• Complete drilling set consisting of drill motor A-2510L and stand S-2300
• Suitable for drilling with water cooling in reinforced concrete
• With 3-fold overload protection
• Infinitely adjustable angle for drilling at any angle
• Base plate suitable for use of quick release or vaccuum kit
• Includes wheel set and integrated quick-change system between motor and tripod

Technical data

• Type: AS-2512
• Power consumption: 2500 watts
• Gears: 3
• Maximum drilling length: 500 mm
• Maximum drilling diameter 45 degrees: 220 mm
• Maximum drilling diameter 90 degrees: 250 mm
• Drilling range from tripod into concrete diameter: 250 mm
• Idle speed 1st gear: 315 rpm
• Load speed 2nd gear: 655 r/min
• Load speed 3rd gear: 970 r/min
• Machine connection: 5/4UNC
• Voltage: 230 V
• Weight: 21,5 kg
