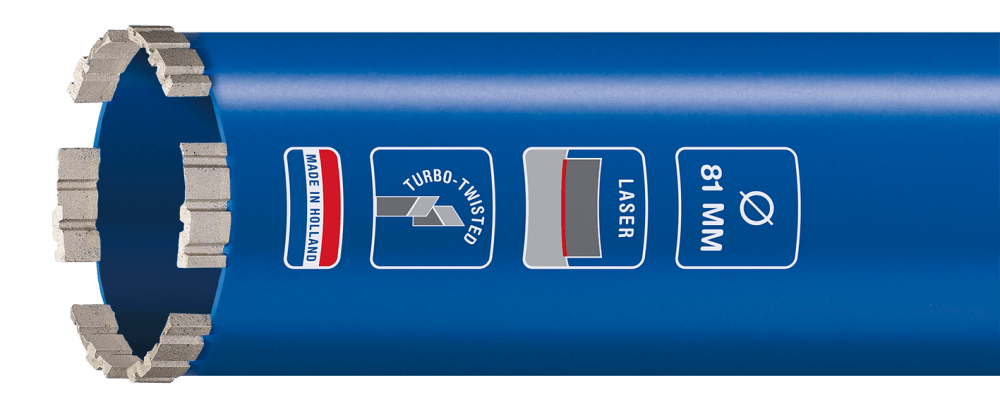

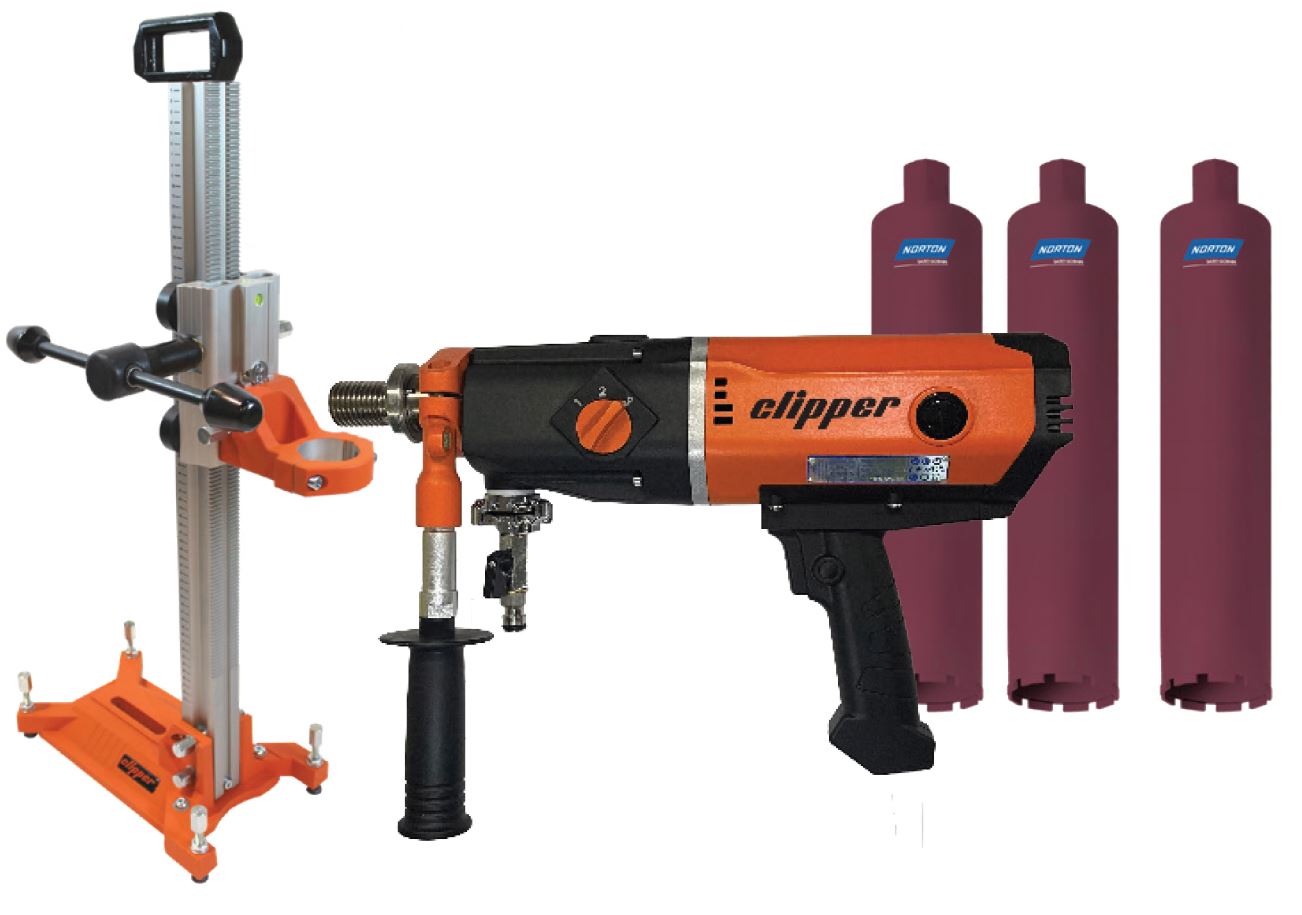

Norton Clipper 70184632577 70184632299 CDM 204 Diamond drill wet-dry 2200 Watt + Diamond drill 81 + 101 + 131 mm + CDR163 drill stand

Clipper CDM 204 Diamond drill wet-dry 2200 Watt + Diamond drill 81 + 101 + 131 mm + CDR163 drill stand

The Norton Clipper CDM 204 is a powerful and reliable 2.2 kW drill motor. Its user-friendly design is ideally designed for intensive wet and dry drilling with drill bits up to Ø 202 mm. Thanks to overload protection, electrical and mechanical components are protected, extending the life of the machine. Improved cooling of the entire aluminum housing prevents damage from overheating and gives direct access to the motor brushes for easy maintenance.

Description

• Hand-operated 2.2 kW core drilling motor with 60 mm motor neck for both manual and position-controlled drilling up to Ø 202 mm
• 3-speed gearbox with combination spindle ½" & 1"¼ for use different drill diameters
• Connection for wet & dry drilling
• Automatic soft start to reduce starting current
• Transmission with oil bath lubrication provides maintenance-free long-term lubrication
• Overload protection protects the electronic and mechanical Components for longer life and high user safety
• Sturdy carrying case included
• LED control display for setting the correct power supply
• LED control display indicates when preventive maintenance should be performed

Technical data

• Power supply: 230 volts
• Power: 2200 watts
• Speed under load: 650/1300/2600
• Drilling range 15-202 mm
• Connection: R½ + 1' ¼
• Neck diameter 60 mm
• Weight: 7.5 kg

Includes

• Hand drill with PRCD switch
• Water hose connection
• Handle
• Manual
• Suitcase
