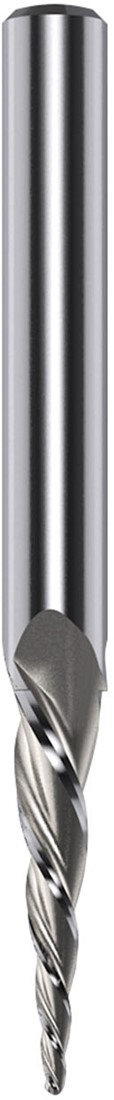

CMT 152.060.082 HWM tapered 2D/3D spiral cutter with ball head, positive cutting angle

CMT HWM tapered 2D/3D spiral cutter with ball head, positive cutting angle

Features

• top quality solid carbide
• Spiralized positive cutting edges for upward chip removal [Z2/Z3]
• perfect finish on the underside of the workpiece.

Application

• specially designed for high-precision 2D and 3D engraving and milling in plastics, aluminum and wood
• Milling 3D reliefs
• 2D engravings
• very suitable for deep machining
• signs and nameplates with engraved letters
• contour milling, profiling, modeling and mold making for furniture, signs and jewelry
• perfect for large 3D milling operations in hard expanded polystyrene ("Styrofoam") and other materials.

Excellent for milling

• acrylonitrile-butadiene-styrene copolymer (abs) - acrylic - acrylic stone - aluminum - bronze - composite materials - Corian® - Coroplast® - ''Cross Linked'' polyethylene foam (xpe) - Dibond® - ethafoam - ethylene-vinyl acetate foam (eva) - foamboard - expanded polypropylene (epp) - expanded polystyrene (eps) - extruded polystyrene (xps) - fiberglass reinforced polyester - fiberglass reinforced polyester PCB - graphite - high density urethane (hdu) - high density polyethylene (HDPE) - wood - copper - plastics - Lexan™ - MDF/HDF - brass - PALFOAM™ - Phenolics - Phenolic-composites - visual communication boards - polymethyl methacrylate (pmma) - polyethylene foam - polylam - polyurethane board - polyurethane foam - PVC - PVC foam board - visual communication foam - titanium Tips for milling plastics: Avoid heat generation. Ensure good chip removal by using smaller diameters. Cooling and chip removal with compressed air recommended.

Technical Data:

• A (cutting angle) 5.5°
• D (diameter) in mm 0.8 mm
• S (cob) in mm 6 mm
• I (useful cutting length) in mm 25 mm
• L (overall length) in mm 70 mm
• R (radius) in mm 0.4 mm
• Z (number of teeth/cutting edges) 3
• Direction of rotation RH (clockwise)
• Subcategory Engraving / embossing (milling)
