CMT 718.060.11 Dovetail cutter shaft 6 mm

CMT 718.060.11 Dovetail cutter shaft 6 mm

• What do you think when you see a perfectly executed dovetail joint?
• Are you not surprised by the extraordinary robustness and beauty of this type of joint?
• Don''t you have the desire to start a new project just for the pleasure of making it?
• Add CMT dovetail cutters to your dream and it will come true.
• Whether you are a professional or an amateur, our cutters can bring a new dimension to your work.
• The ideal application for these cutters are solid carcasses, overhead cabinets and built-in drawers.
• They are used to secure trasportals of shelves and even cabinet partitions.
• Our tools can be mounted on any type of milling machine or router and are interchangeable with most insertion systems available on the market
• Suggestions: On the milling machine, install the shim that comes with the machine to follow the mold.
• Mill at least twice for each insertion along the screen slots.
• Before removing the piece, make sure that the cut is clean and complete.
• To extend the life of the dovetail cutter, perform a first pass with a cutter with straight cutting heads.
• To achieve chamfers with unusual angles, we recommend using a milling machine or a router fitted with a guide. -
• High-grade widia steel
• 2 CUTTING
• 1 x frees

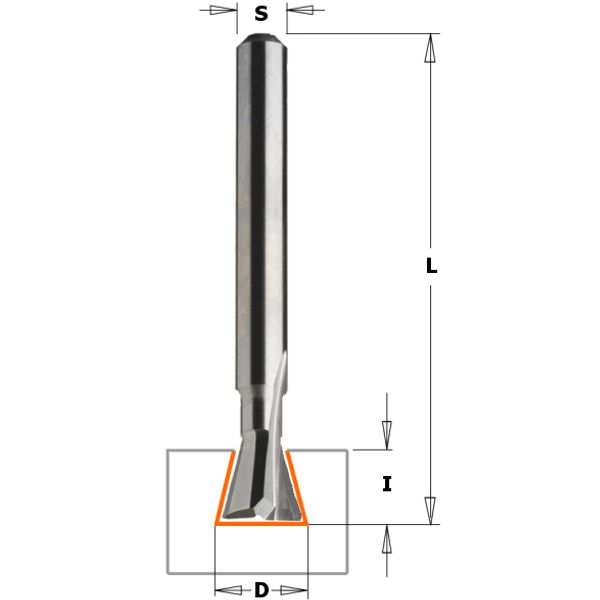

Specifications

• Milling length L=60 mm
• Milling cutter diameter D=6 mm
• Cutting height I=8,3 mm
• Degrees A=7.5°
• Intake S=6 mm
