CMT 906.690.11B Outlet cutter with end guide 19 x 50,8 mm XL shank 12 mm

CMT 906.69011B Outlet cutter with end guide 19 x 50,8 mm XL shank 12 mm

Outlet cutters with end bearing XL

Features

• To simplify runout in the most difficult cases, we have designed a series of truly indispensable cutters
• The sizes realized by us can meet all requirements
• These cutters with a tungsten-carbonide coating can be used for precision work on laminates or for rapid profile work
• Suggestions: These cutters are ideal for accomplishing progressive machining on wood
• With a router with straight cutters ø 13mm (711.130.11 ) you make a channel approx. 5 mm deep on the side of the piece of wood where you want to make the advancing cut
• With a wood drill ø 13mm (517.130.31) one drills a hole in one end of the channel that runs through the piece of wood
• The piece is then turned over to finish machining
• Use a spindle-moulder ø 12.7 mm with a cutting length slightly greater than the thickness of the moulding, while following the channel with the guide bearing from the opposite side of the wood

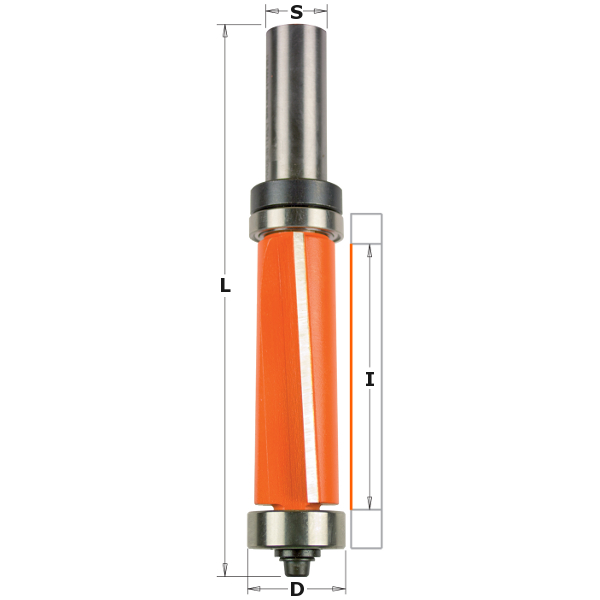

Specifications

• Cutter diameter D=19 mm
• Cutting height I=50,8 mm
• Overall length L=109,5 mm
• Bearing to be used 791.004.00
• Intake S=12 mm
